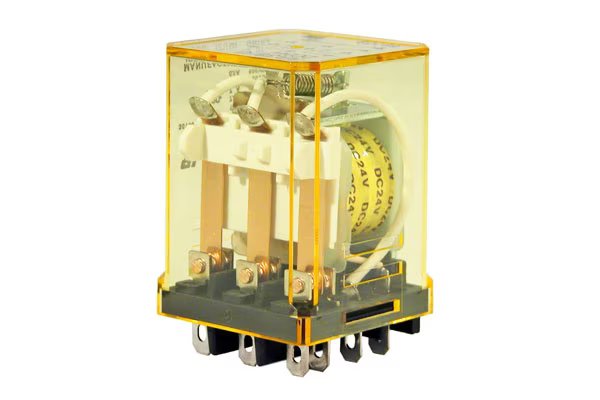

IDEC RELAY RR3B-ULCAC240V

Product Code: RR3B-ULCAC240V

The IDEC RR3B-ULCAC240V is a midget power type relay designed for versatility and efficiency in various applications. It comes in both pin and blade terminal styles to suit different wiring preferences. The relay features an indicator and a check button for convenient test operations, as well as a side flange for additional mounting options. Compatible with DIN rail, surface, and panel mount sockets, it offers flexibility for a wide range of mounting scenarios.

Technical Specifications

Contact Resistance (mO) 30
Operating Time 25ms
Resistance to Shock (m/s²) 100
Resistance to Vibrations 10 to 55Hz
Brand IDEC
Terminal Shape Blade Terminal
Coil Voltage AC (V) 240
Contact Material Silver
Contacts 3PDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 10,000,000
Model With Indicator and Check Button
Operating Humidity 5 to 85%
Operational Temperature Range (°C) -25 to 40
Weight (g) 82
