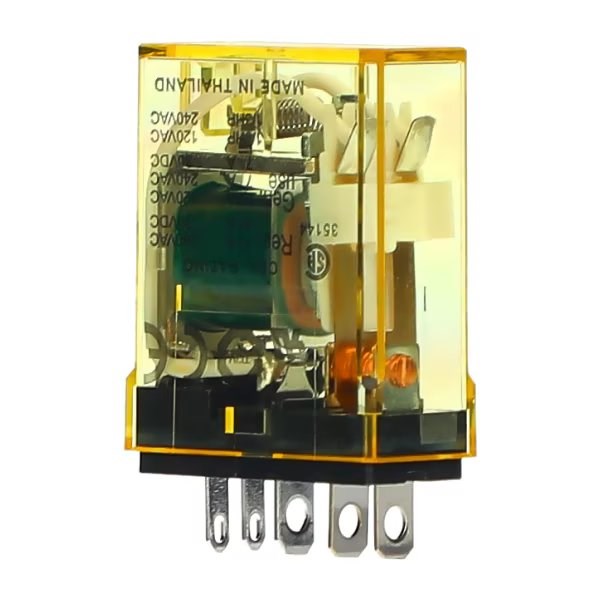

IDEC RELAY PLUG-IN RELAY SPDT 10A 120V AC RH1B-ULCAC120V

Product Code: RH1B-ULCAC120V

The IDEC RH1B-ULCAC120V is a plug-in relay designed for efficient operation in compact spaces. It features SPDT through 4PDT configurations with a high contact capacity of 10A at 120V AC. This miniature power relay offers large capacity switching in a space-saving design, making it suitable for a wide range of applications where power and size constraints are critical.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 50
Operating Time 20ms
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Terminal Shape Blade Terminal
Coil Voltage AC (V) 120
Contact Material Silver Cadmium Oxide
Contacts SPDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 50,000,000
No. of Poles 1
Operating Humidity 45 to 85%
Power Consumption (W) 0.8
Weight (g) 24
