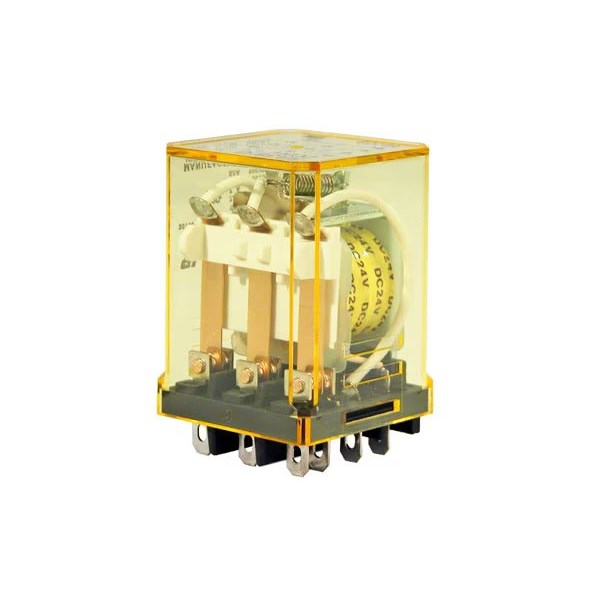

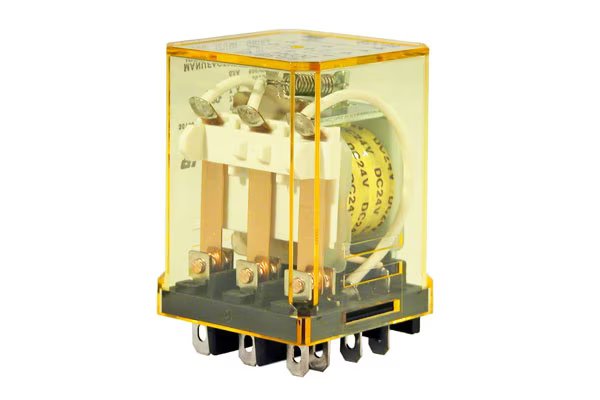

IDEC RELAY PLUG-IN 3PDT 10A 120V AC RR3B-ULCAC120V

Product Code: RR3B-ULCAC120V

The IDEC RR3B-ULCAC120V is a plug-in relay designed for robust performance with a 3PDT contact configuration and a 10A current rating at 120V AC. It offers flexibility in connections with both pin and blade terminal styles. Enhanced functionality is provided through options such as an indicator, a check button for test operations, and a side flange. The relay is compatible with DIN rail, surface, and panel mount sockets to suit diverse mounting requirements.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 30
Operating Time 25ms
Resistance to Shock (m/s²) 100
Resistance to Vibrations 10 to 55Hz
Terminal Shape Blade Terminal
Coil Voltage AC (V) 120
Contact Material Silver
Contacts 3PDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 10,000,000
Model With Indicator and Check Button
Operating Humidity 5 to 85%
Operational Temperature Range (°C) -25 to 40
Weight (g) 82
