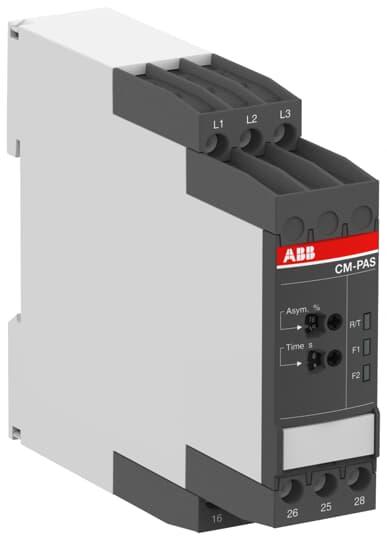

ABB CM-PAS.41S THREE-PHASE MONITORING RELAY MEASURING & CONTROL (L-L) 300-500VAC 2CO

Product Code: CM-PAS.41S

Three-phase monitoring relay, monitors the phase parameters phase failure, phase sequence and phase unbalance. Measuring Range (L-L) 300 ... 500 V AC, operates with a rated control supply voltage of 300-500 V AC and have 2 CO (SPDT) output. An ON-delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). Double-chamber cage connection terminals

Technical Specifications

Brand ABB
Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to +60
Contacts 2CO (SPDT)
Duty Time 100%
Overvoltage Category III
Rated Control Supply Voltage AC (V) 3 x 300-500
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 6/4
Terminal Type Screw
Timing Range Start-up delay: 200ms, Tripping delay: 0s or 0.1-30s (ON)
Degree of Protection IP50 (Housing), IP20 (Terminals)
Pollution Degree 3
