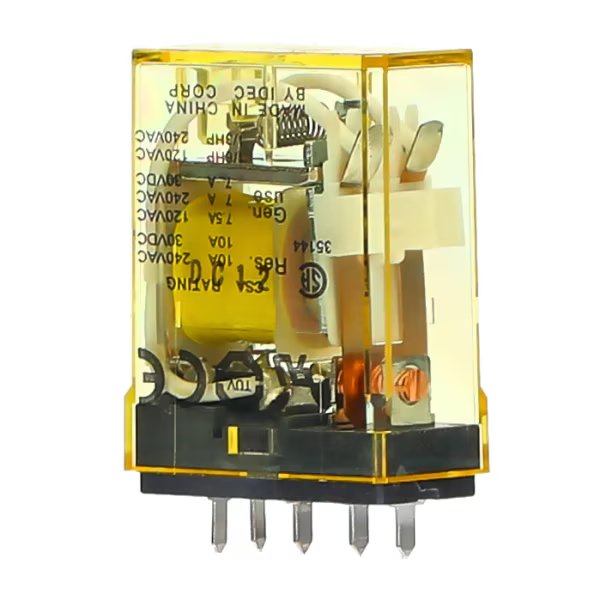

IDEC RELAY PCB SPDT 10A RELAY RH1V2-UDC12V

Product Code: RH1V2-UDC12V

The IDEC RH1V2-UDC12V is a versatile PCB relay offering SPDT through 4PDT configurations with a robust 10A contact capacity. Its compact design enables space-saving on circuit boards while providing the high performance of miniature power relays with large capacity switching capabilities. This relay is ideal for applications where space is at a premium and reliable power switching is required.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 50
Operating Time 20ms
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Terminal Shape PCB Terminal
Coil Voltage DC (V) 12
Contact Material Silver Cadmium Oxide
Contacts SPDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 50,000,000
No. of Poles 1
Operating Humidity 45 to 85%
Power Consumption (W) 0.8
Weight (g) 24
