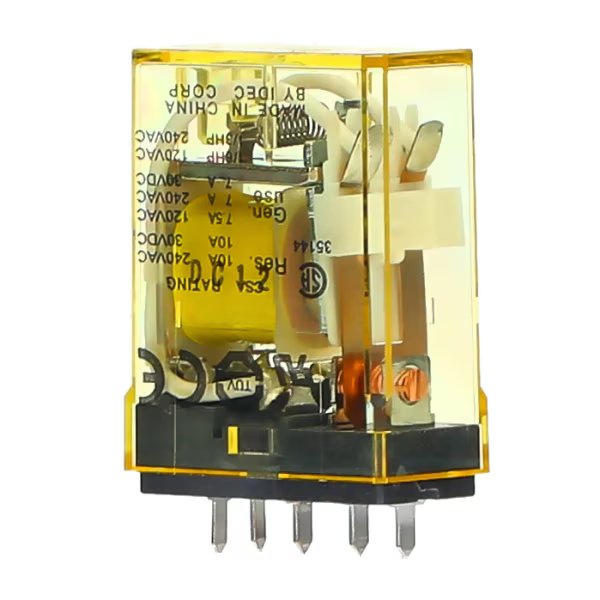

IDEC RELAY PCB SPDT 10A RELAY RH1V2-UAC24V

Product Code: RH1V2-UAC24V

The IDEC RH1V2-UAC24V is a compact, high-capacity power relay suitable for PCB applications. It offers SPDT through 4PDT configurations with 10A contact capacity, ensuring versatility in control tasks. Its miniature design allows for efficient space utilization without compromising on power, making it ideal for dense circuit layouts.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 50
Operating Time 20ms
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Terminal Shape PCB Terminal
Coil Voltage AC (V) 24
Contact Material Silver Cadmium Oxide
Contacts SPDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 50,000,000
No. of Poles 1
Operating Humidity 45 to 85%
Power Consumption (W) 0.8
Weight (g) 24
