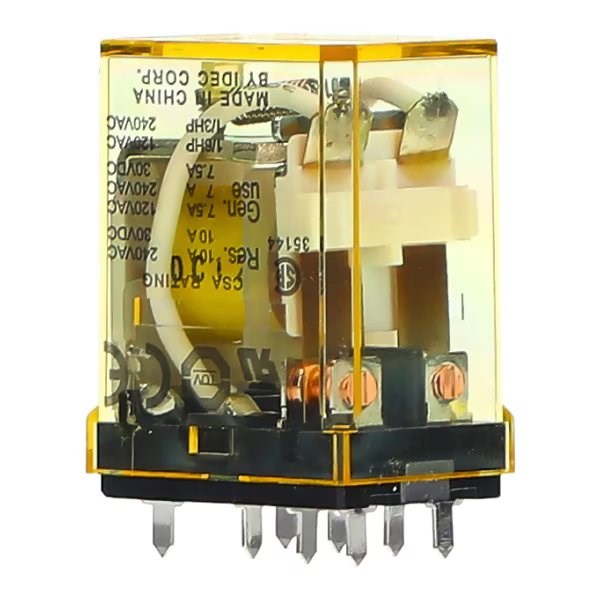

IDEC RELAY PCB DPDT 10A BASIC RELAY RH2V2-UDC100-110

Product Code: RH2V2-UDC100-110

The IDEC RH2V2-UDC100-110 is a compact, high-capacity DPDT relay designed for PCB applications. With a 10A contact capacity, it offers robust performance in a miniature package. Its space-saving design makes it ideal for dense circuit configurations without sacrificing power. This basic relay is well-suited for a variety of industrial uses where reliable switching is essential.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 50
Operating Time 20ms
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Terminal Shape PCB Terminal
Coil Voltage DC (V) 100 - 110
Contact Material Silver Cadmium Oxide
Contacts DPDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 50,000,000
No. of Poles 2
Operating Humidity 45 to 85%
Power Consumption (W) 0.9
Weight (g) 37
