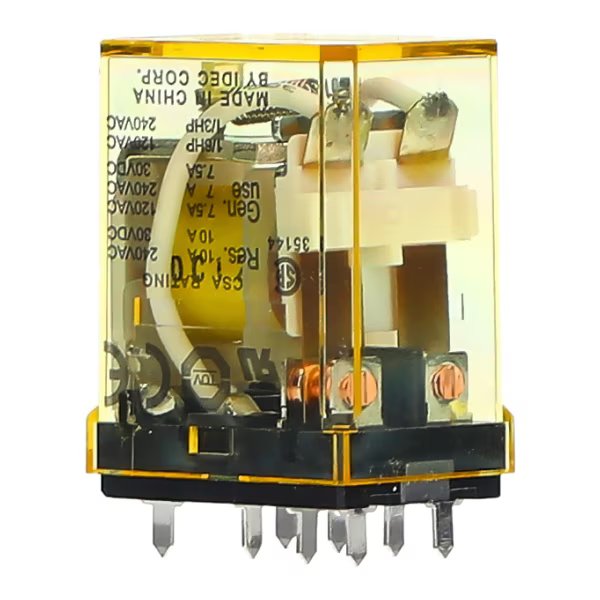

IDEC RELAY PCB DPDT 10A BASIC RELAY RH2V2-UAC110-120

Product Code: RH2V2-UAC110-120

The IDEC RH2V2-UAC110-120 is a compact, high-capacity DPDT relay suitable for PCB applications. It offers a 10A contact capacity within its miniature frame, ensuring space-saving installation without sacrificing power. This basic relay is designed for efficient performance in power-type relay applications.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 50
Operating Time 20ms
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Terminal Shape PCB Terminal
Coil Voltage AC (V) 110 - 120
Contact Material Silver Cadmium Oxide
Contacts DPDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 50,000,000
No. of Poles 2
Operating Humidity 45 to 85%
Power Consumption (W) 0.9
Weight (g) 37
