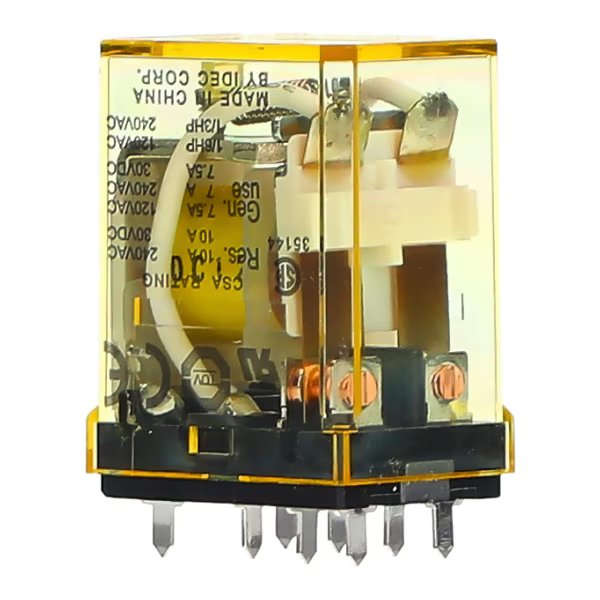

IDEC RELAY PCB DPDT 10A 12V DC RELAY RH2V2-ULDC12V

Product Code: RH2V2-ULDC12V

The IDEC RH2V2-ULDC12V is a compact, high-capacity DPDT relay designed for PCB applications. With a 10A contact capacity, it offers robust performance in a miniature package. Its space-saving design makes it ideal for dense circuit configurations without sacrificing power. This relay operates on a 12V DC coil voltage, ensuring compatibility with common industry standards.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 50
Operating Time 20ms
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Terminal Shape PCB Terminal
Coil Voltage DC (V) 12
Contact Material Silver Cadmium Oxide
Contacts DPDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 50,000,000
No. of Poles 2
Operating Humidity 45 to 85%
Power Consumption (W) 0.9
Weight (g) 37
