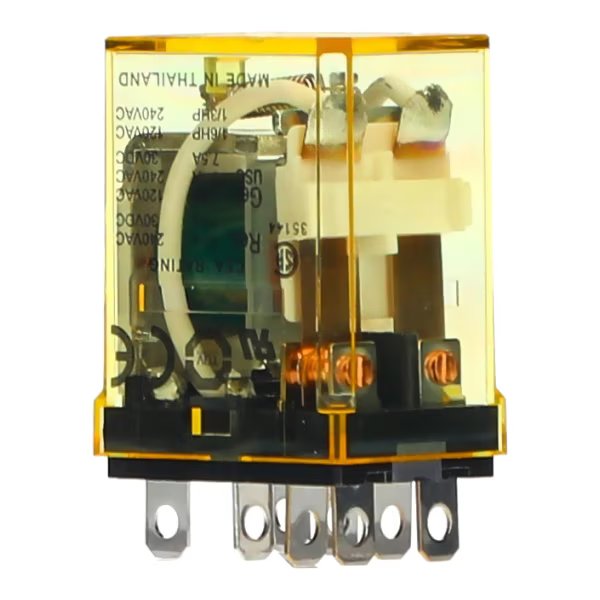

IDEC RELAY, DPDT, 48V DC, 10A WITH INDICATOR & CHECK BUTTON RH2B-ULC-DC48V

Product Code: RH2B-ULC-DC48V

The IDEC RH2B-ULC-DC48V is a compact, high-capacity DPDT relay designed for efficient operation in space-constrained environments. It features a 10A contact capacity and is equipped with an indicator and check button for easy status verification and testing. Its miniature size does not compromise its power, making it ideal for applications requiring both reliability and compactness.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 50
Operating Time 20ms
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Terminal Shape Blade Terminal
Coil Voltage DC (V) 48
Contact Material Silver Cadmium Oxide
Contacts DPDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 50,000,000
No. of Poles 2
Operating Humidity 45 to 85%
Power Consumption (W) 0.9
Weight (g) 37
