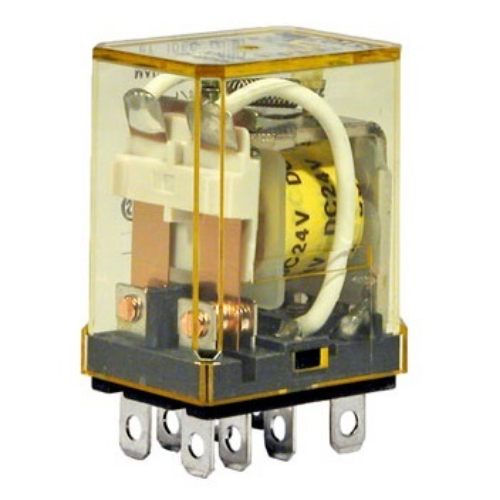

IDEC PLUG-IN RELAY DPDT 32VDC 10A RH2B-UDC32

Product Code: RH2B-UDC32

The IDEC RH2B-UDC32 is a compact power relay from the RH2 Series, designed for efficient space utilization and robust performance. This DPDT relay operates with a 32VDC coil voltage and supports a 10A switching current. It features high switching capacity with blade style terminals for easy installation. Ideal for applications requiring reliable power control in a compact form factor, this relay ensures consistent operation in various industrial settings.

Technical Specifications

Brand IDEC
Coil Voltage DC (V) 32
Contact Configuration DPDT
Contact Material Silver cadmium oxide
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 operations
Minimum Mechanical Life 50,000,000 operations
No. of Poles 2P
Operating Humidity 45 to 85% RH (no condensation)
Operational Temperature Range (°C) -25 to +40
Rated Current (A) 10
Relay Type RH2 2PDT Relay
Series RH
Suitable Base SH2B-05C
Terminal Type Blade
Weight (g) 37
