Electrical Time Switches, Timers & Control Relays

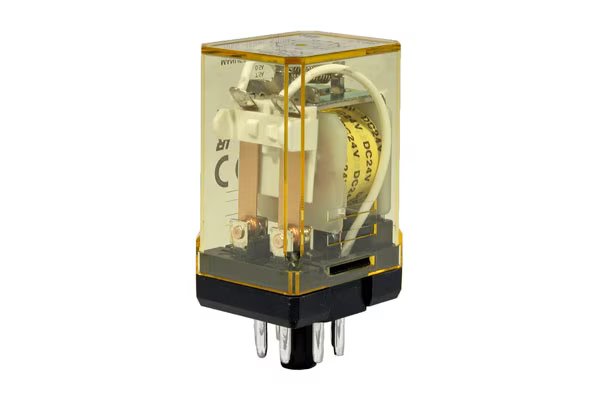

IDEC RELAY, DPDT, 24V DC, 10A 8 PIN RR2P-ULDC24

Product Code: RR2P-ULDC24

The IDEC RR2P-ULDC24 is a DPDT relay designed for dependable performance with a 24V DC coil and 10A contact rating. It offers high reliability and longevity, suitable for various applications. This relay comes with global certifications including UL, CSA, TUV, and CE. It features a test button and an indicator light for operational convenience. Multiple mounting options are available such as flange mounting, DIN socket, or panel mount socket to accommodate different installation requirements.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 30
Operating Time 25ms
Resistance to Shock (m/s²) 100
Resistance to Vibrations 10 to 55Hz
Terminal Shape Pin Terminal
Coil Voltage DC (V) 24
Contact Material Silver
Contacts DPDT
Dimensions (mm) 35.6W x 68.5H x 28.6D
Minimum Electrical Life 200,000
Minimum Mechanical Life 10,000,000
Model With Indicator
Operating Humidity 5 to 85%
Operational Temperature Range (°C) -25 to 40
Weight (g) 90
