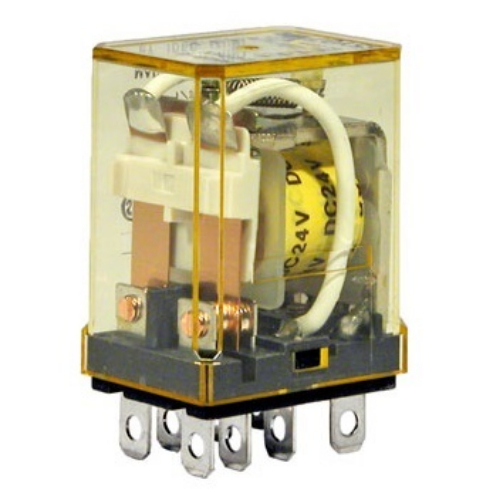

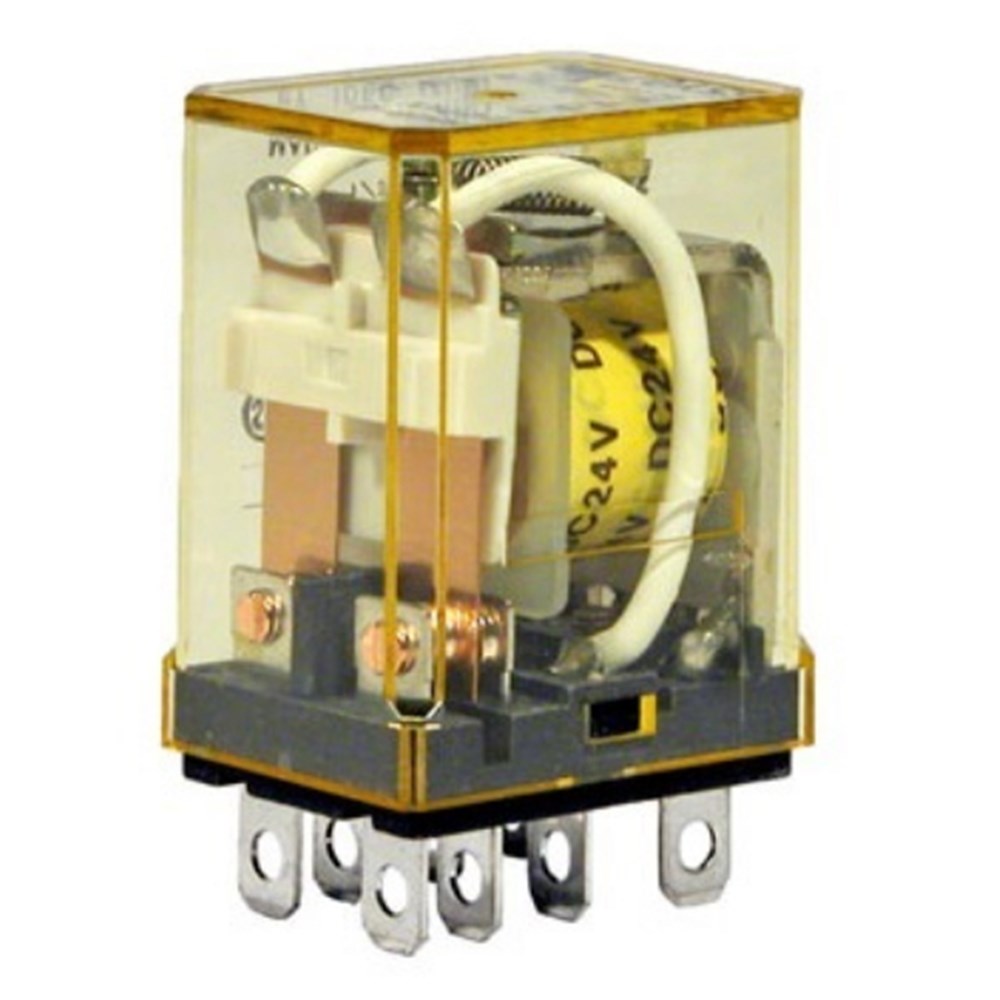

IDEC PLUG-IN RELAY WITH INDICATOR & DIODE DPDT 24VDC 10A RH2B-ULD-DC24

Product Code: RH2B-ULD-DC24

The IDEC RH2B-ULD-DC24 is a compact, high-capacity plug-in relay designed for efficient power switching. It features a DPDT configuration with a 24VDC coil voltage and can handle a 10A switching current. Equipped with blade-style terminals, this relay includes an LED indicator and diode for quick status recognition and circuit protection. Its space-saving design makes it suitable for various applications where reliable performance is essential.

Technical Specifications

Brand IDEC
Coil Voltage DC (V) 24
Contact Configuration DPDT
Contact Material Silver cadmium oxide
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 operations
Minimum Mechanical Life 50,000,000 operations
No. of Poles 2P
Operating Humidity 45 to 85% RH (no condensation)
Operational Temperature Range (°C) -25 to +40
Rated Current (A) 10
Relay Type RH2 2PDT Relay with LED indicator & diode
Series RH
Suitable Base SH2B-05C
Terminal Type Blade
Weight (g) 37
