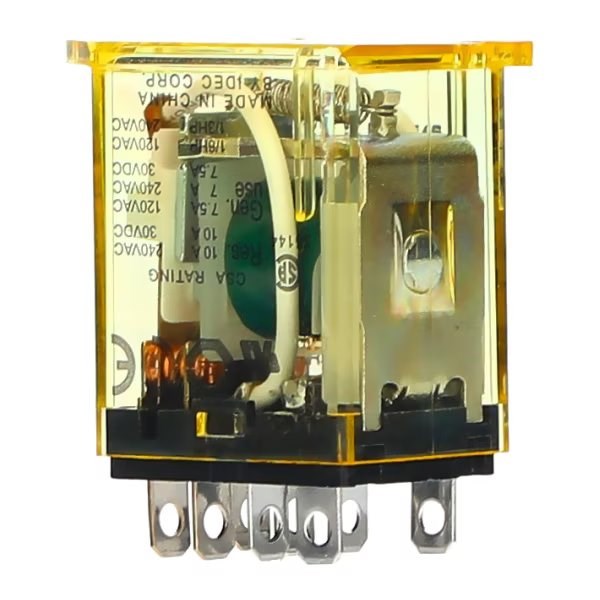

IDEC RELAY, DPDT, 24V DC, 10A TOP BRACKET MOUNTING RH2B-UTDC24V

Product Code: RH2B-UTDC24V

The IDEC RH2B-UTDC24V is a compact, high-capacity DPDT relay designed for top bracket mounting. It operates on a 24V DC power supply and can handle up to 10A of current. Its miniature size allows for efficient use of space without sacrificing performance. This relay is ideal for applications where reliable switching and space-saving are critical.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 50
Operating Time 20ms
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Terminal Shape Blade Terminal
Coil Voltage DC (V) 24
Contact Material Silver Cadmium Oxide
Contacts DPDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 50,000,000
No. of Poles 2
Operating Humidity 45 to 85%
Power Consumption (W) 0.9
Weight (g) 37
