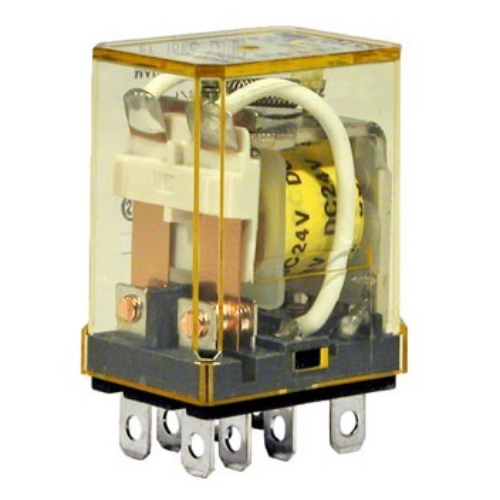

IDEC RELAY DPDT 24VDC 10A RH2B-UDC24

Product Code: RH2B-UDC24

The IDEC RH2B-UDC24 is a compact power relay from the RH2 Series, designed for efficient switching with a DPDT configuration and a 24VDC coil voltage. It offers a robust 10A contact capacity and utilizes blade style terminals for secure connections. Its space-saving design ensures it fits neatly into various applications without compromising power or performance.

Technical Specifications

Brand IDEC
Coil Voltage DC (V) 24
Contact Configuration DPDT
Contact Material Silver cadmium oxide
Insulation Resistance (MO) 100
No. of Poles 2P
Operating Humidity 45 to 85% RH (no condensation)
Operational Temperature Range (°C) -25 to +40
Rated Current (A) 10
Relay Type RH2 2PDT Relay
Series RH
Terminal Type Blade
Weight (g) 37
