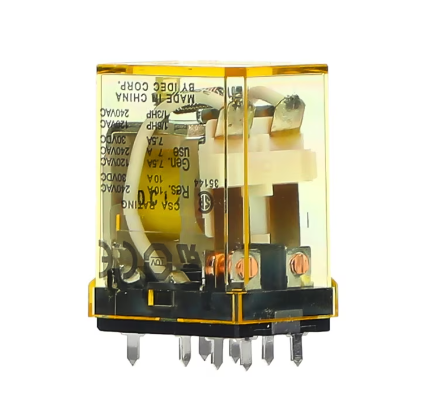

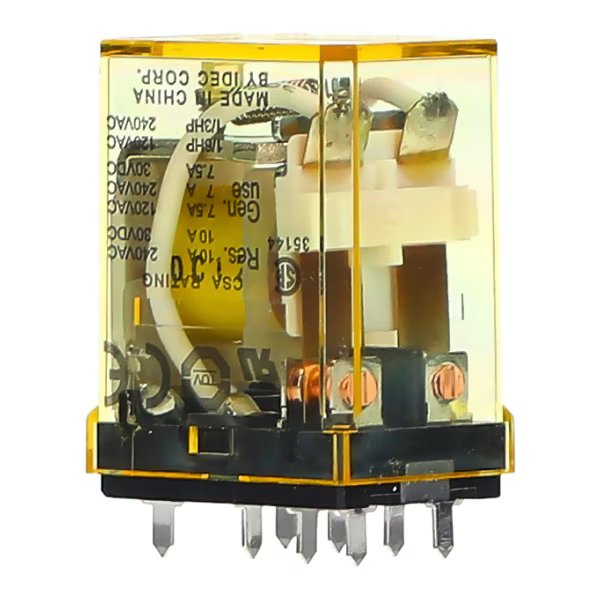

IDEC RELAY, DPDT, 24V DC, 10A PCB MOUNT RH2V2-UDC24V

Product Code: RH2V2-UDC24V

The IDEC RH2V2-UDC24V is a DPDT relay designed for PCB mounting, offering reliable performance with a 10A contact rating. It operates on a 24V DC power supply, suitable for industrial applications. The relay's DPDT configuration allows for versatile switching solutions. Additionally, it is RoHS compliant, ensuring adherence to environmental standards and durability in demanding industrial settings.

Technical Specifications

Operating Humidity 45 to 85% RH (No Condensation)
Terminal Shape PCB Terminal
Resistance to Shock (m/s²) 1000
Brand IDEC
Ambient Temperature Range (°C) -25 to 70
Coil Voltage DC (V) 24
Contact Configuration DPDT
Contact Material Silver Cadmium Oxide
Contact Resistance (mO) 50
Contacts DPDT
Insulation Resistance (MO) 100
Minimum Electrical Life 500,000 Operations
Minimum Mechanical Life 50,000,000 Operations
No. of Poles 2
Operating Time 20ms (Measured at the rated voltage (at 20°C))
Power Consumption (VA) AC: 1.4VA (50Hz), 1.2VA (60Hz)
Power Consumption (W) DC: 0.9W
Rated Current (A) 10
Resistance to Vibrations 10 to 55Hz
Terminal Type PCB
Dimensions (mm) 21W x 42H x 27.5D
Weight (g) 37
