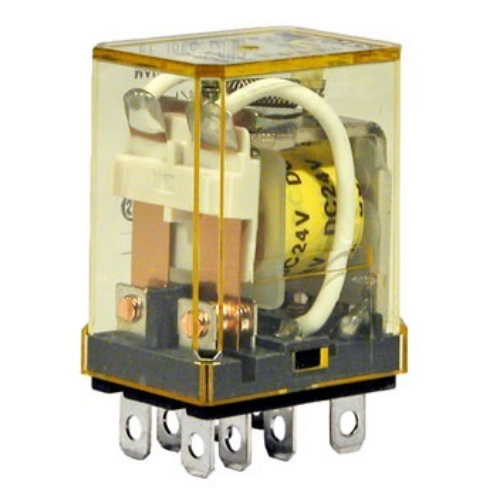

IDEC PLUG-IN RELAY DPDT 24VAC 10A RH2B-UAC24

Product Code: RH2B-UAC24

The IDEC RH2B-UAC24 is a compact power relay from the RH2 Series, designed for efficient space utilization and high-performance switching. This DPDT relay operates with a 24VAC coil voltage and supports a 10A switching current. It features blade style terminals for secure connections and boasts a high contact capacity, making it suitable for various applications requiring reliable power management.

Technical Specifications

Brand IDEC
Coil Voltage AC (V) 24
Contact Configuration DPDT
Contact Material Silver cadmium oxide
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 operations
Minimum Mechanical Life 50,000,000 operations
No. of Poles 2P
Operating Humidity 45 to 85% RH (no condensation)
Operational Temperature Range (°C) -25 to +40
Rated Current (A) 10
Relay Type RH2 2PDT Relay
Series RH
Suitable Base SH2B-05C
Terminal Type Blade
Weight (g) 37
