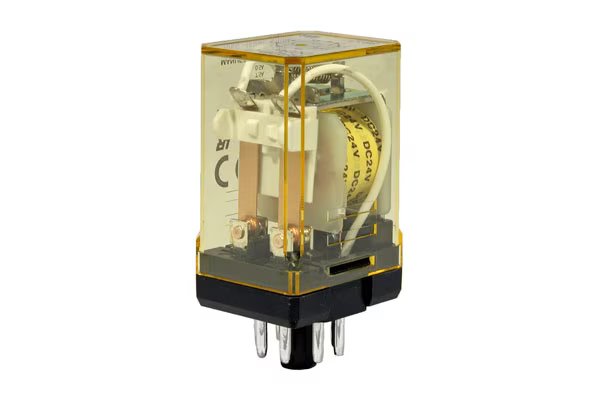

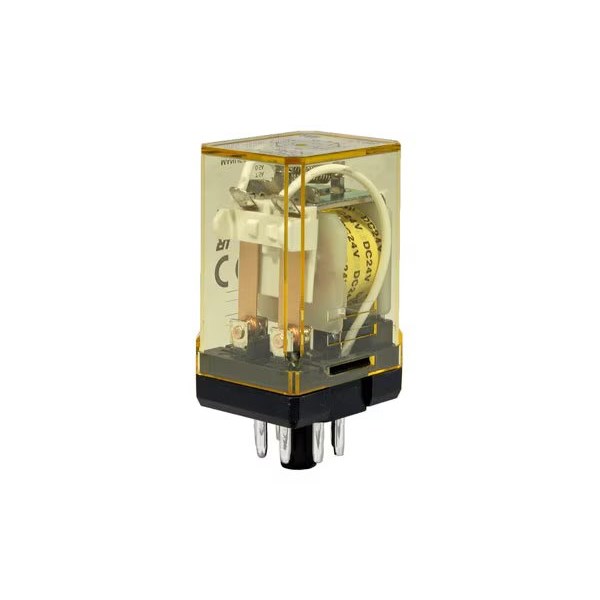

IDEC RELAY, DPDT, 240V AC, 10A 8 PIN RELAY RR2P-ULC-AC240

Product Code: RR2P-ULC-AC240

The IDEC RR2P-ULC-AC240 is a DPDT relay designed for high reliability and longevity. Rated at 240V AC and 10A, this 8-pin relay meets global standards with UL, CSA, TUV, and CE approvals. It features a test operation check button and an indicator light for easy diagnostics. Versatile mounting options include flange mounting, DIN socket, or panel mount socket to suit various installation requirements.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 30
Operating Time 25ms
Resistance to Shock (m/s²) 100
Resistance to Vibrations 10 to 55Hz
Terminal Shape Pin Terminal
Coil Voltage AC (V) 240
Contact Material Silver
Contacts DPDT
Minimum Electrical Life 200,000
Minimum Mechanical Life 10,000,000
Model With Indicator and Check Button
Operating Humidity 5 to 85%
Operational Temperature Range (°C) -25 to 40
Weight (g) 90
