Product Code: RR2P-UAC240

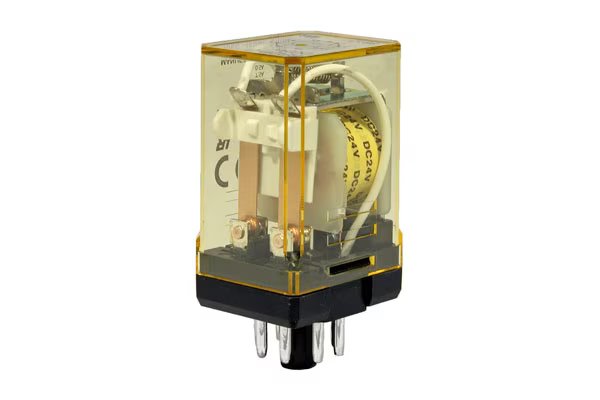

The IDEC RR2P-UAC240 is a robust DPDT relay designed for industrial applications requiring reliable switching. This 240V AC, 10A relay features a wear-resistant self-holding mechanism, ensuring high durability against vibration and shock. It is specifically engineered for latching relay applications and adheres to RoHS compliance for environmental safety. Ideal for demanding environments, this round 8-pin relay offers dependable performance with its rugged construction.

Contact Resistance (mO)	30
Operating Time	20ms (Measured at the rated voltage (at 20°C))
Power Consumption (VA)	AC: 3VA (50Hz), 2.5VA (60Hz)
Resistance to Shock (m/s²)	100
Resistance to Vibrations	10 to 55Hz
Brand	IDEC
Terminal Shape	Pin Terminal
Ambient Temperature Range (°C)	-25 to 40
Coil Voltage AC (V)	240
Contact Configuration	DPDT
Contact Material	Silver
Contacts	DPDT
Dimensions (mm)	29.3W x 56H x 36.4D
Minimum Electrical Life	200,000 Operations
Minimum Mechanical Life	10,000,000 Operations
Model	Basic
No. of Pins	8
Operating Humidity	5 to 85% RH (No Condensation)
Operational Temperature Range (°C)	-25 to 40
Power Consumption (W)	DC:1.5W
Rated Current (A)	10
Terminal Type	Pin
Weight (g)	90
