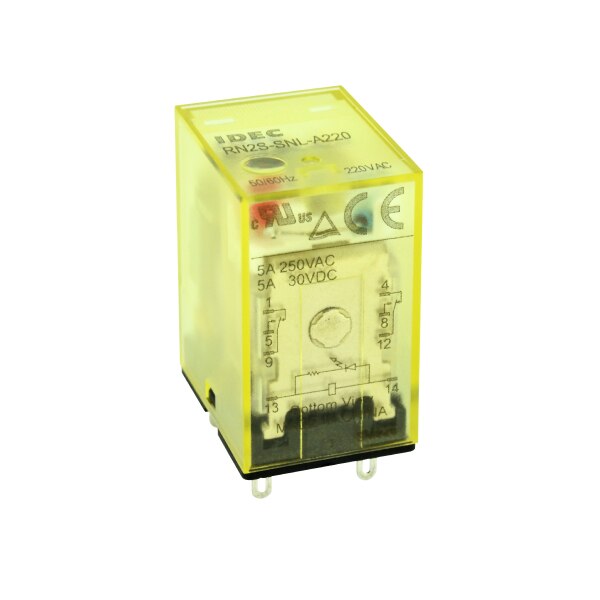

IDEC RELAY, DPDT, 220V AC, 5A WITH INDICATOR RN2S-NL-A220

Product Code: RN2S-NL-A220

The IDEC RN2S-NL-A220 is a DPDT relay designed for industrial applications, compatible with 220V AC power sources. It features high-capacity contacts that can handle up to 5A, ensuring robust performance. The relay includes an LED indicator for immediate visual status confirmation and is built with durable materials for long-term reliability. This straightforward relay meets the demands of various industrial switching needs without unnecessary complexity.

Technical Specifications

Contact Resistance (mO) 100
Operating Time 20ms (Measured at the rated voltage (at 20°C))
Power Consumption (VA) AC: 1.2VA
Relay Options Indicator Light
Resistance to Vibrations 10 to 55Hz
Brand IDEC
Ambient Temperature Range (°C) -40 to 70
Coil Voltage AC (V) 220
Contact Configuration DPDT
Contact Material Ag Alloy
Contacts DPDT
Dimensions (mm) 21.5W x 36H x 28D
Minimum Electrical Life 100,000 Operations
Minimum Mechanical Life 10,000,000 Operations
Operating Humidity 35 to 85% RH
Operational Temperature Range (°C) -40 to 70
Power Consumption (W) DC: 0.9W
Rated Current (A) 5
Weight (g) 35
