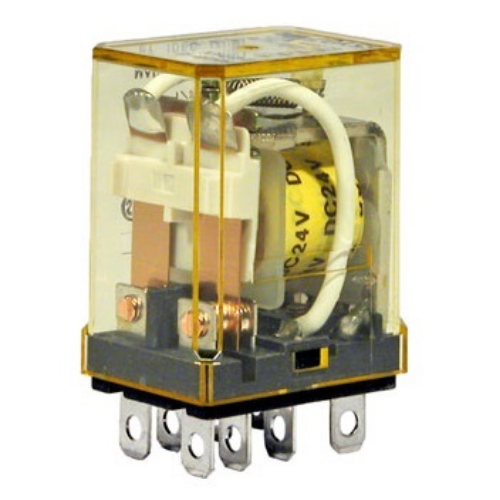

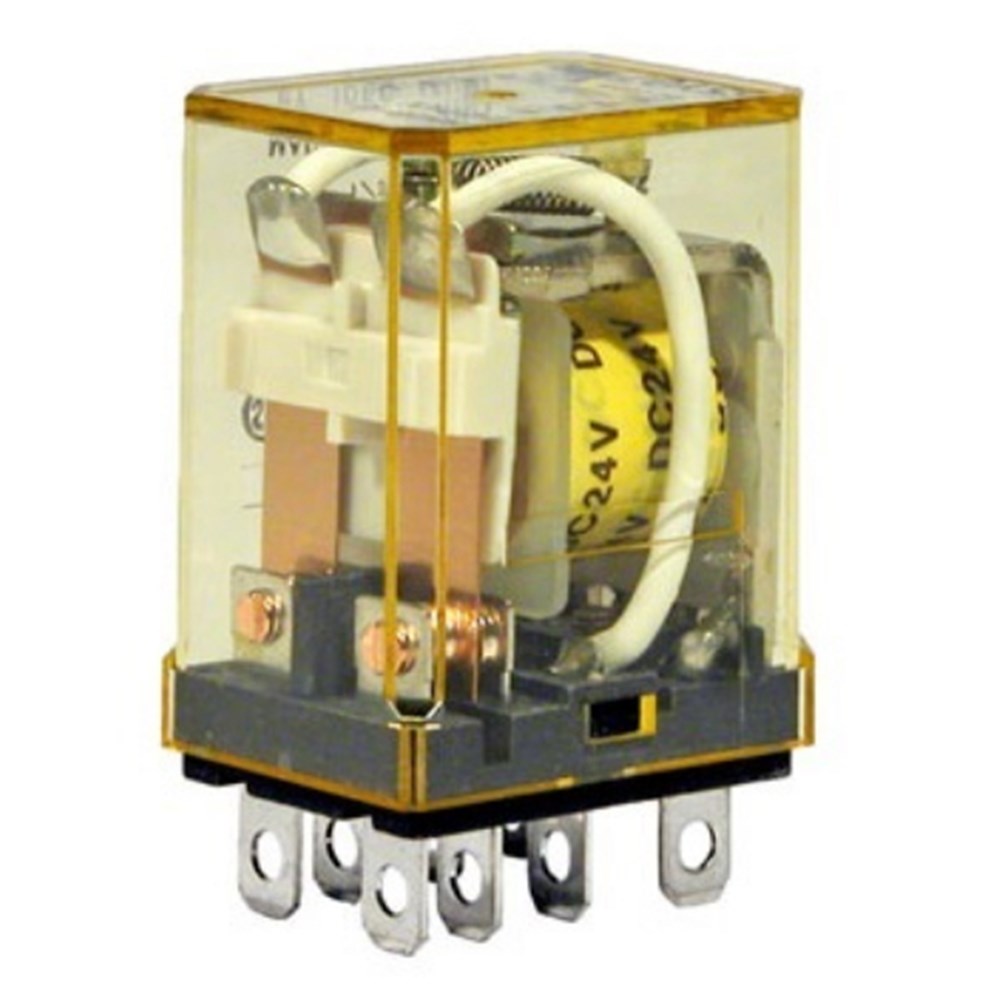

IDEC PLUG-IN RELAY WITH DIODE DPDT 12VDC 10A RH2B-UD-DC12

Product Code: RH2B-UD-DC12

The IDEC RH2B-UD-DC12 is a compact power relay from the RH2 Series, featuring a DPDT configuration with a 12VDC coil voltage and a 10A switching current. It is designed with blade style terminals and an integrated diode for efficient operation. This relay offers high switching capacity within its space-saving size, making it suitable for various applications where space and power are considerations.

Technical Specifications

Brand IDEC
Coil Voltage DC (V) 12
Contact Configuration DPDT
Contact Material Silver cadmium oxide
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 operations
Minimum Mechanical Life 50,000,000 operations
No. of Poles 2P
Operating Humidity 45 to 85% RH (no condensation)
Operational Temperature Range (°C) -25 to +40
Rated Current (A) 10
Relay Type RH2 2PDT Relay with diode
Series RH
Suitable Base SH2B-05C
Terminal Type Blade
Weight (g) 37
