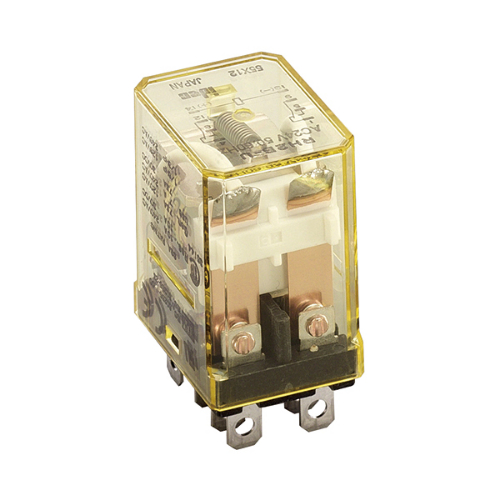

IDEC PLUG-IN RELAY DPDT 125VDC 10A RH2B-UDC125V

Product Code: RH2B-UDC125V

The IDEC RH2B-UDC125V is a compact power relay from the RH2 Series, designed for efficient space utilization and high-performance switching. This DPDT relay operates with a 125VDC coil voltage and supports a 10A switching current. Its blade style terminals ensure secure connections, while its compact size does not compromise on its robust 10A contact capacity. Ideal for applications requiring reliable power management in a condensed form factor.

Technical Specifications

Brand IDEC
Coil Voltage DC (V) 125
Contact Configuration DPDT
Contact Material Silver cadmium oxide
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 operations
Minimum Mechanical Life 50,000,000 operations
No. of Poles 2P
Operating Humidity 45 to 85% RH (no condensation)
Operational Temperature Range (°C) -25 to +40
Rated Current (A) 10
Relay Type RH2 2PDT Relay
Series RH
Suitable Base SH2B-05C
Terminal Type Blade
Weight (g) 37
