Relays

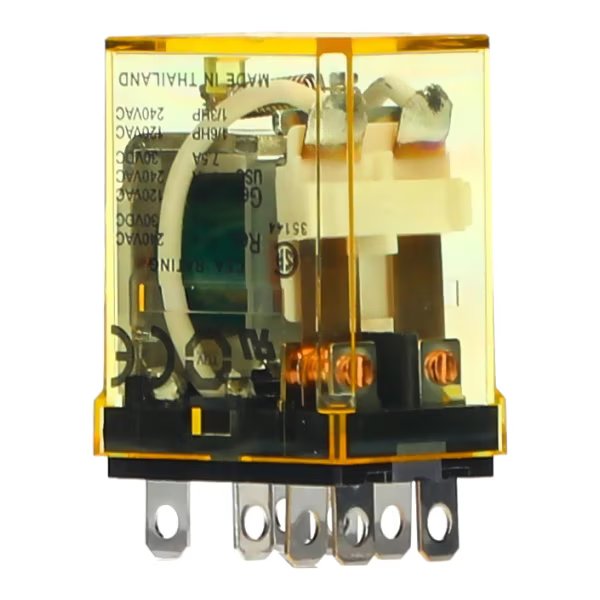

IDEC RELAY DPDT 10A WITH LED RELAY RH2B-ULDC6V

Product Code: RH2B-ULDC6V

The IDEC RH2B-ULDC6V is a compact, high-capacity DPDT relay with an integrated LED. It offers a 10A contact capacity within its miniature frame, ensuring space-saving installation without sacrificing performance. This power relay is designed for efficient operation in various applications where size and power are considerations.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 50
Operating Time 20ms
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Terminal Shape Blade Terminal
Coil Voltage DC (V) 6
Contact Material Silver Cadmium Oxide
Contacts DPDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 50,000,000
No. of Poles 2
Operating Humidity 45 to 85%
Power Consumption (W) 0.9
Weight (g) 37
