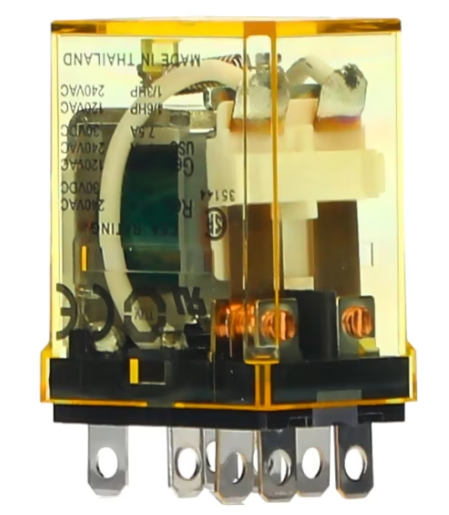

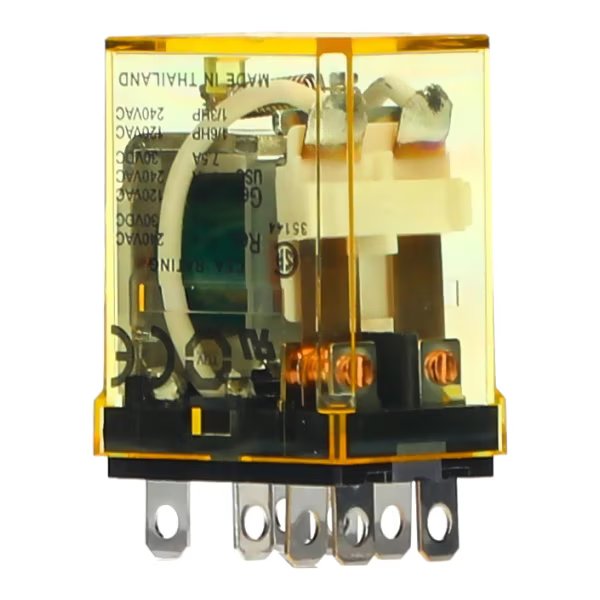

IDEC RELAY DPDT 10A W/LED RELAY RH2B-ULDC100-110

Product Code: RH2B-ULDC100-110

The IDEC RH2B-ULDC100-110 is a DPDT relay designed for industrial applications, offering 100-110V DC compatibility. It features a bright LED indicator for clear status visibility and a robust 10A contact rating for dependable performance. This relay is RoHS compliant, ensuring it meets environmental standards and is built to withstand the rigors of industrial use.

Technical Specifications

Contact Resistance (mO) 50
Operating Time 20ms (Measured at the rated voltage (at 20°C))
Power Consumption (VA) AC: 1.4VA (50Hz), 1.2VA (60Hz)
Relay Options Indicator Light
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Brand IDEC
Terminal Shape Blade Terminal
Ambient Temperature Range (°C) -25 to 70
Coil Voltage DC (V) 100 - 110
Contact Configuration DPDT
Contact Material Silver Cadmium Oxide
Contacts DPDT
Dimensions (mm) 21W x 42H x 27.5D
Insulation Resistance (MO) 100
Minimum Electrical Life 500,000 Operations
Minimum Mechanical Life 50,000,000 Operations
No. of Poles 2
Operating Humidity 45 to 85% RH (No Condensation)
Power Consumption (W) DC: 0.9W
Rated Current (A) 10
Terminal Type Blade
Weight (g) 37
