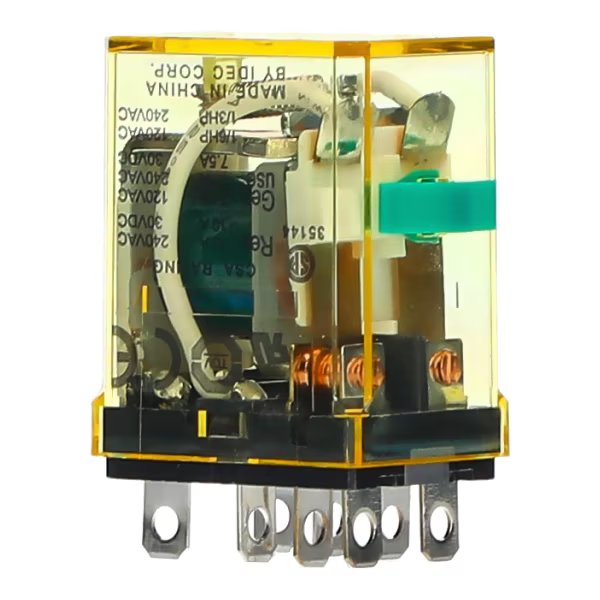

IDEC RELAY DPDT 10A WITH CHECK BTN RELAY RH2B-UCDC24V

Product Code: RH2B-UCDC24V

The IDEC RH2B-UCDC24V is a compact, high-capacity DPDT relay with a check button feature. It offers a 10A contact capacity within its miniature frame, ensuring efficient use of space without sacrificing power. This relay is designed for applications requiring reliable switching and space-saving installation.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 50
Operating Time 20ms
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Terminal Shape Blade Terminal
Coil Voltage DC (V) 24
Contact Material Silver Cadmium Oxide
Contacts DPDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 50,000,000
No. of Poles 2
Operating Humidity 45 to 85%
Power Consumption (W) 0.9
Weight (g) 37
