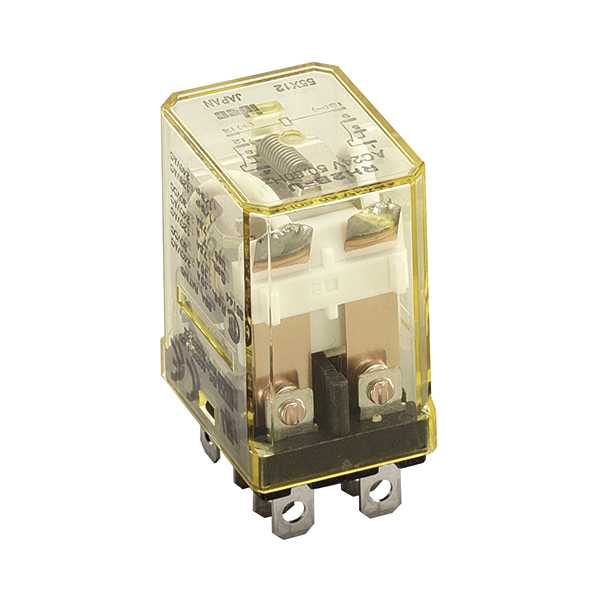

IDEC PLUG-IN RELAY DPDT 48VDC 10A RH2B-UDC48V

Product Code: RH2B-UDC48V

The IDEC RH2B-UDC48V is a plug-in relay featuring DPDT contacts with a 10A capacity at 48VDC. Its miniature design ensures space efficiency without compromising on power, offering high switching capabilities. The relay comes with blade-style terminals for secure and easy connections, making it suitable for various applications where space and reliable performance are critical.

Technical Specifications

Brand IDEC
Coil Voltage DC (V) 48
Contact Configuration DPDT
Contact Material Silver cadmium oxide
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 operations
Minimum Mechanical Life 50,000,000 operations
No. of Poles 2P
Operating Humidity 45 to 85% RH (no condensation)
Operational Temperature Range (°C) -25 to +40
Rated Current (A) 10
Relay Type RH2 DPDT Relay
Series RH
Suitable Base SH2B-05C
Terminal Type Blade
Weight (g) 37
