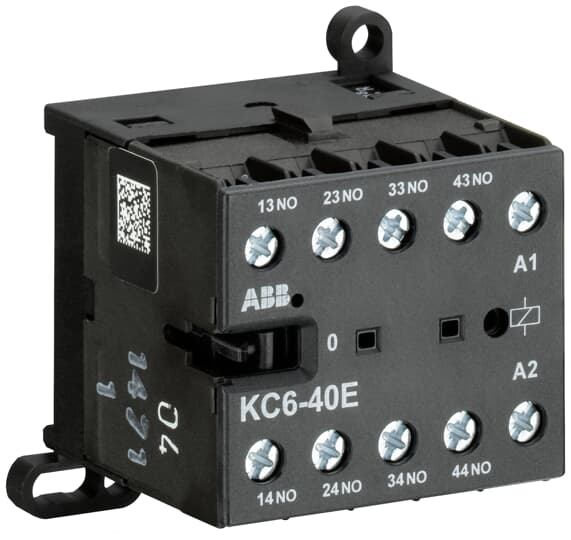

ABB MINI CONTACTOR RELAY 4NO 24V DC KC640E01

Product Code: KC640E01

The KC6-40E mini contactor relay is a compact 4 pole contactor relay with screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors relays are used in residential budlings, commercial buildings and industrial applications for switching of control signals up to 3 A / 400 V (AC-15). Further features are the noiseless and hum-free coil and a switch position indication.

Technical Specifications

Brand ABB
Coil Consumption Average Holding Value DC 3.5W Average Pull-in Value DC 3.5W
Minimum Switching Capacity (mA) 5
Minimum Switching Capacity (V) 17
No. of Normally-open Auxiliary Contacts 4
Rated Operational Current AC-15 120V (A) 4
Rated Operational Current AC-15 24V (A) 4
Rated Operational Current AC-15 400V (A) 3
Rated Operational Current AC-15 500V (A) 2
Rated Operational Current DC-13 110V (A) 0.7
Rated Operational Current DC-13 24V (A) 2.5
Short-Circuit Protective Devices gG Type Fuses 6A
Mounting Position 1 - 6
Degree of Protection IP20
Dimensions (mm) 52.5W x 57.5H x 46.5D
Mounting Type DIN Rail, Screw
No. of Poles 4
Operational Temperature Range (°C) -25 to 55
Power Loss (W) 0.32 per Pole
Rated Control Circuit Voltage DC (V) 24
Rated Impulse Withstand Voltage (kV) Auxiliary Circuit: 6kV
Rated Insulation Voltage (V) 690
Rated Operational Current AC-15 240V (A) 4
Rated Operational Voltage AC (V) Auxiliary Circuit: 690V AC
Rated Operational Voltage DC (V) Auxiliary Circuit: 250V DC
Standards and Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1
Storage Temperature Range (°C) -40 to 85
Terminal Type Screw Terminals
Weight (kg) 0.175
Wire Stripping Length (mm) Auxiliary Circuit: 9mm
