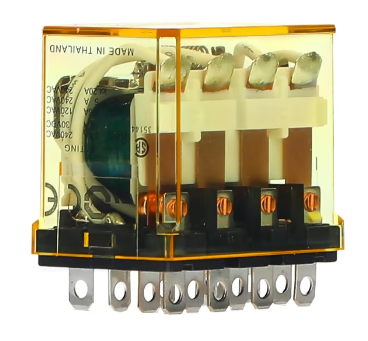

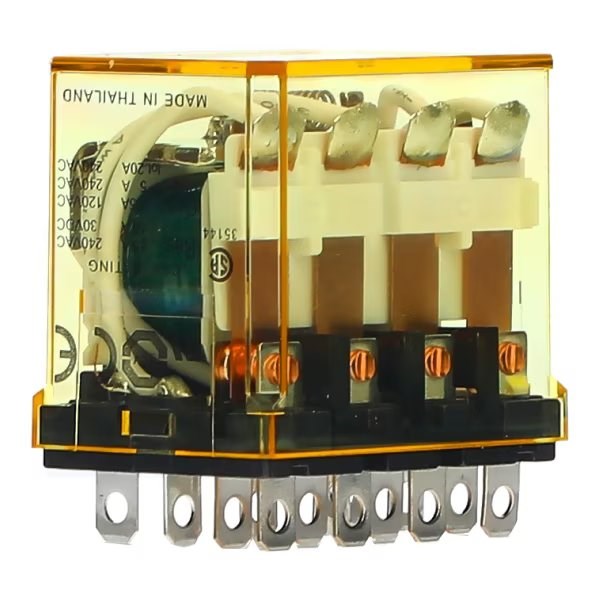

IDEC RELAY 4PDT, 48V DC, 10A WITH INDICATOR RH4B-ULDC48

Product Code: RH4B-ULDC48

The IDEC RH4B-ULDC48 is a 4PDT relay designed for industrial applications, offering 48V DC compatibility and a robust 10A contact rating. It features a bright LED indicator for clear status visibility and versatile switching capabilities. This relay is RoHS compliant, ensuring durability and adherence to environmental standards.

Technical Specifications

Contact Resistance (mO) 50
Operating Time 25ms (Measured at the rated voltage (at 20°C))
Power Consumption (VA) AC: 2.5VA (50Hz), 2VA (60Hz)
Relay Options Indicator Light
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Brand IDEC
Terminal Shape Blade Terminal
Ambient Temperature Range (°C) -25 to 70
Coil Voltage DC (V) 48
Contact Configuration 4PDT
Contact Material Silver Cadmium Oxide
Contacts 4PDT
Dimensions (mm) 41W x 42H x 27.5D
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 Operations
Minimum Mechanical Life 50,000,000 Operations
No. of Poles 4
Operating Humidity 45 to 85% RH (No Condensation)
Power Consumption (W) DC: 1.5W
Rated Current (A) 10
Terminal Type Blade
Weight (g) 74
