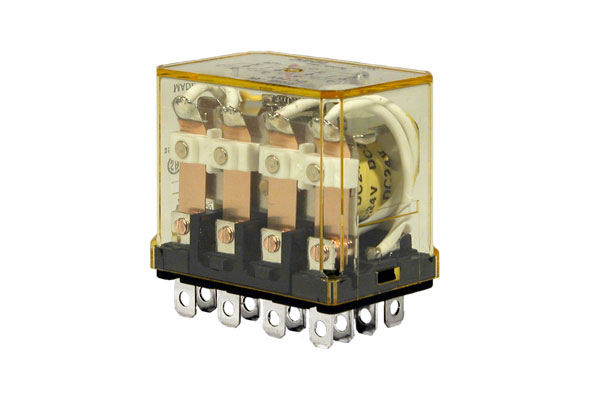

IDEC PLUG-IN RELAY 4PDT WITH INDICATOR & DIODE 10A 240VAC 48VDC RH4B-ULD-DC48V

Product Code: RH4B-ULD-DC48V

The IDEC RH4B-ULD-DC48V is a 4PDT plug-in relay designed for efficient operation in power applications. It features a built-in indicator and diode, with a contact capacity of 10A at 240VAC or 48VDC. Its compact size saves space while providing high switching capacity. The relay utilizes blade style terminals for secure connections. This device is suitable for various industrial applications where reliable performance is essential.

Technical Specifications

Brand IDEC
Auxiliary Function Indicator and Check Button
Coil Voltage DC (V) 48
Contact Configuration 4PDT
Contact Material Silver cadmium oxide
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 operations
Minimum Mechanical Life 50,000,000 operations
Model With Indicator and Diode (DC coil only)
No. of Poles 4P
Operating Humidity 45 to 85% RH (no condensation)
Operational Temperature Range (°C) -25 to +40
Rated Continuous Current (A) 10
Rated Current (A) 10
Series RH
Suitable Base SH4B-05C
Terminal Type Blade
Type Compact power type
Weight (g) 74
Weight (kg) 0.024
