Relays

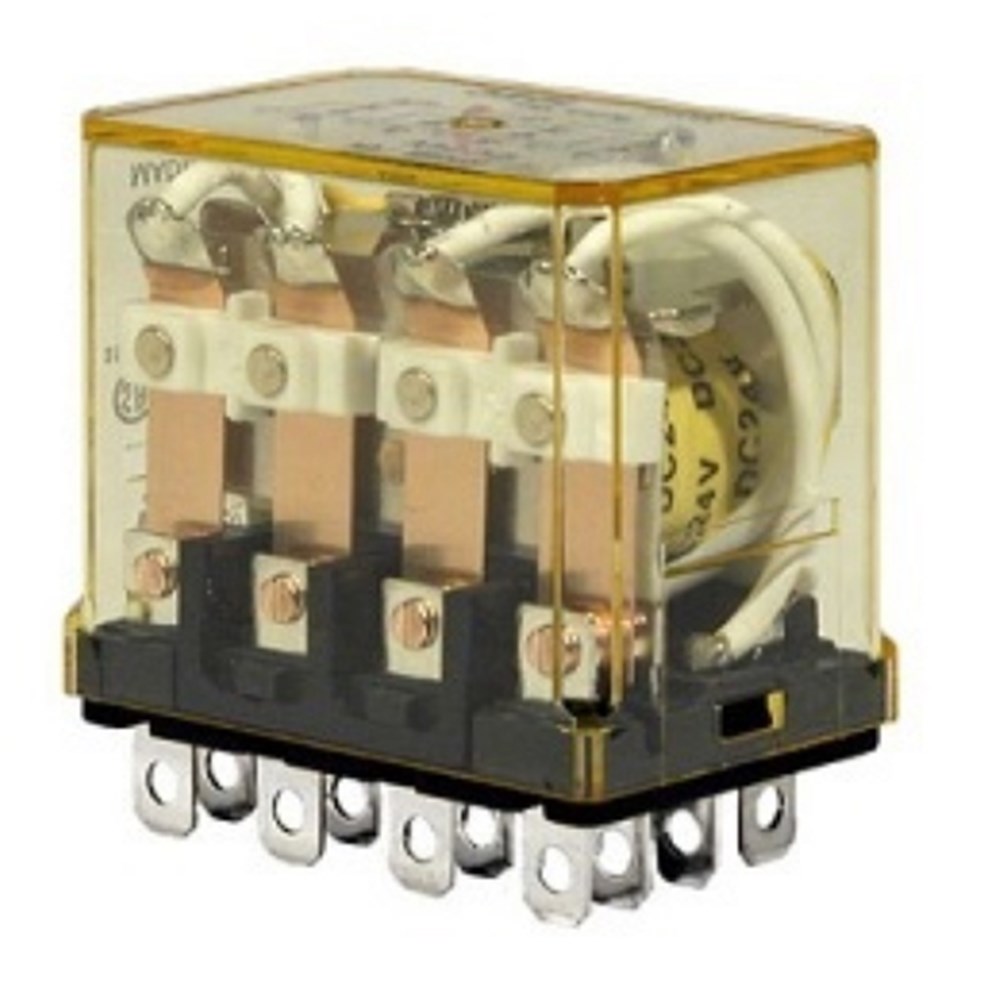

IDEC PLUG-IN RELAY 4PDT 32VDC 10A RH4B-UDC32

Product Code: RH4B-UDC32

The IDEC RH4B-UDC32 is a compact power relay from the RH4 Series, featuring a 4PDT configuration and a 32VDC coil voltage. It offers a high switching capacity with a 10A contact rating, suitable for various applications. The relay's space-saving design and blade style terminals facilitate easy installation and reliable connection in tight spaces.

Technical Specifications

Brand IDEC
Auxiliary Function Indicator and Check Button
Coil Voltage DC (V) 32
Contact Configuration 4PDT
Contact Material Silver cadmium oxide
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 operations
Minimum Mechanical Life 50,000,000 operations
No. of Poles 4P
Operating Humidity 45 to 85% RH (no condensation)
Operational Temperature Range (°C) -25 to +40
Rated Current (A) 10
Relay Type RH4 4PDT Relay
Series RH
Suitable Base SH4B-05C
Terminal Type Blade
Weight (g) 74
