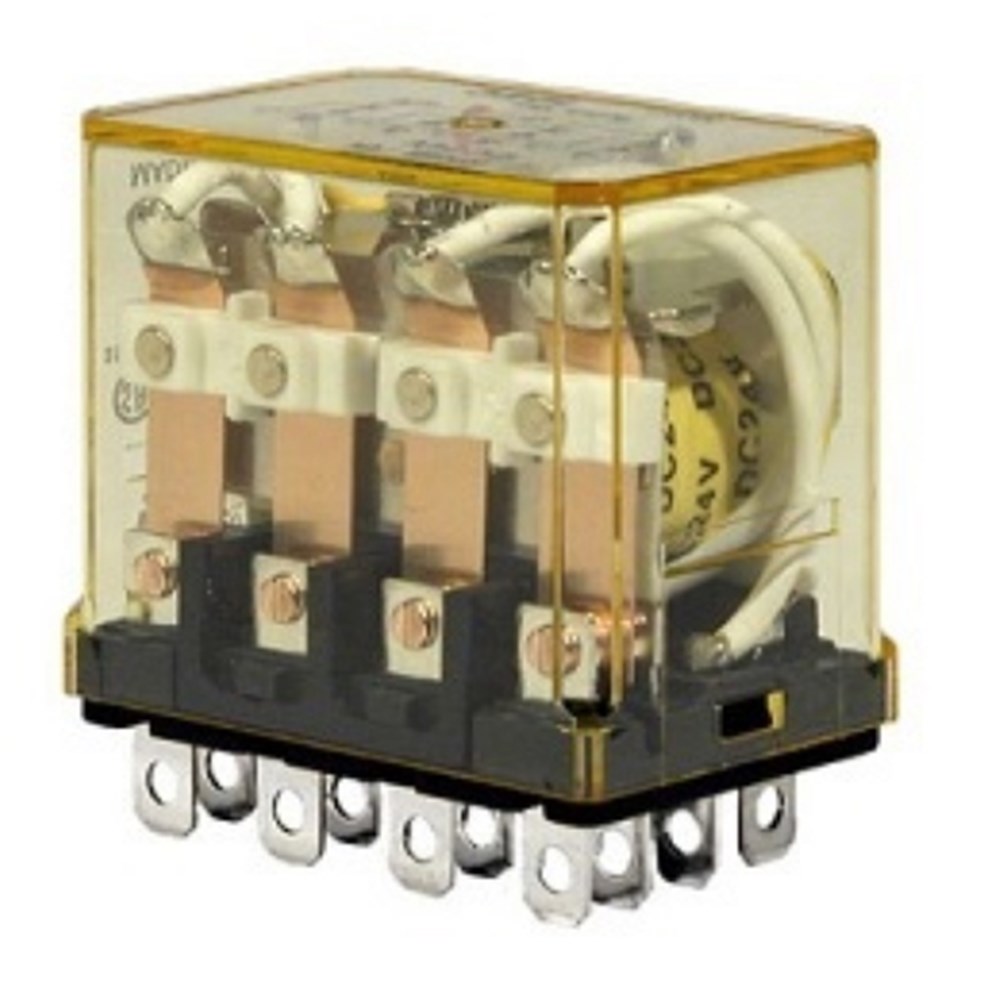

IDEC PLUG-IN RELAY 4PDT WITH INDICATOR 24VDC 10A RH4B-ULDC24

Product Code: RH4B-ULDC24

The IDEC RH4B-ULDC24 is a compact power relay from the RH4 Series, featuring a 4PDT configuration with an integrated LED indicator. It operates on a 24VDC coil voltage and supports a switching current of up to 10A. Designed for space efficiency, this relay offers high switching capacity with blade style terminals for easy installation. Ideal for various applications requiring reliable power switching in a compact form factor.

Technical Specifications

Brand IDEC
Auxiliary Function Indicator and Check Button
Coil Voltage DC (V) 24
Contact Configuration 4PDT
Contact Material Silver cadmium oxide
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 operations
Minimum Mechanical Life 50,000,000 operations
No. of Poles 4P
Operating Humidity 45 to 85% RH (no condensation)
Operational Temperature Range (°C) -25 to +40
Rated Current (A) 10
Relay Type RH4 4PDT Relay with LED indicator
Series RH
Suitable Base SH4B-05C
Terminal Type Blade
Weight (g) 74
