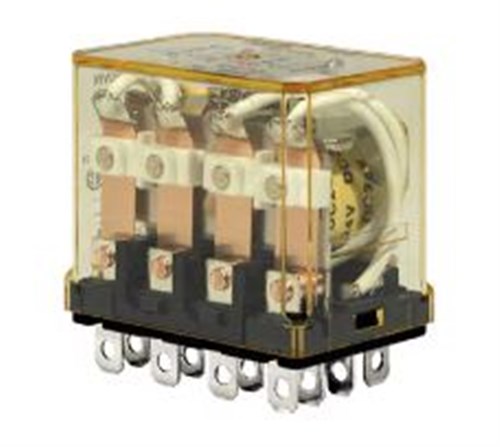

IDEC RELAY, 4PDT, 24V DC, 10A WITH INDICATOR AND DIODE RH4B-LD-DC24V

Product Code: RH4B-LD-DC24V

The IDEC RH4B-LD-DC24V is a 4PDT relay designed for efficient operation in compact spaces. It operates on a 24V DC coil voltage and can handle up to 10A of contact capacity. This miniature power relay comes equipped with an indicator and diode, providing visual confirmation and protection in circuitry. Its small footprint allows for space-saving installation without compromising on power handling capabilities.

Technical Specifications

Operating Humidity 45 to 85%
Resistance to Shock (m/s²) 1000
Brand IDEC
Coil Voltage DC (V) 24
Contact Material Silver Cadmium Oxide
Contact Resistance (mO) 50
Contacts 4PDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 50,000,000
No. of Poles 4
Operating Time 25ms
Power Consumption (W) 1.5
Resistance to Vibrations 10 to 55Hz
Weight (g) 74
