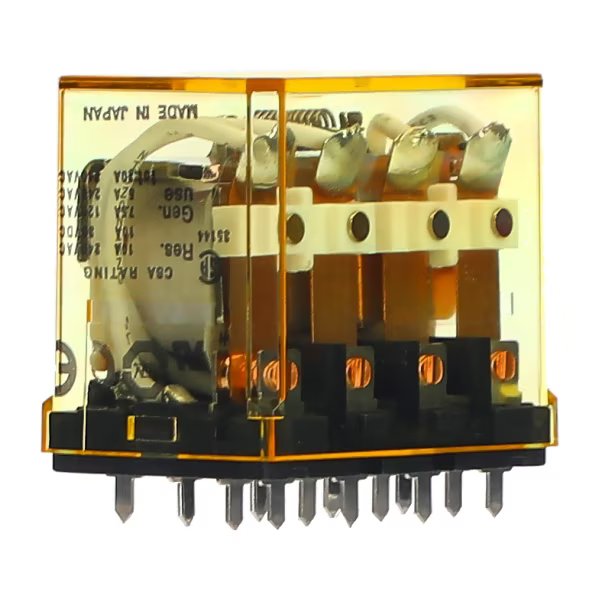

IDEC RELAY, 4PDT, 24V DC, 10A PCB MOUNT RH4V2-UDC24V

Product Code: RH4V2-UDC24V

The IDEC RH4V2-UDC24V is a 4PDT relay designed for PCB mounting, offering a high contact capacity of 10A within a compact form factor. This miniature power relay operates on a 24V DC coil voltage and is engineered to save space while delivering robust performance. Its compact size does not compromise its ability to handle large capacities, making it suitable for various applications where space and power are critical considerations.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 50
Operating Time 25ms
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Terminal Shape PCB Terminal
Coil Voltage DC (V) 24
Contact Material Silver Cadmium Oxide
Contacts 4PDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 50,000,000
No. of Poles 4
Operating Humidity 45 to 85%
Power Consumption (W) 1.5
Weight (g) 74
