Product Code: RH4B-ULAC24

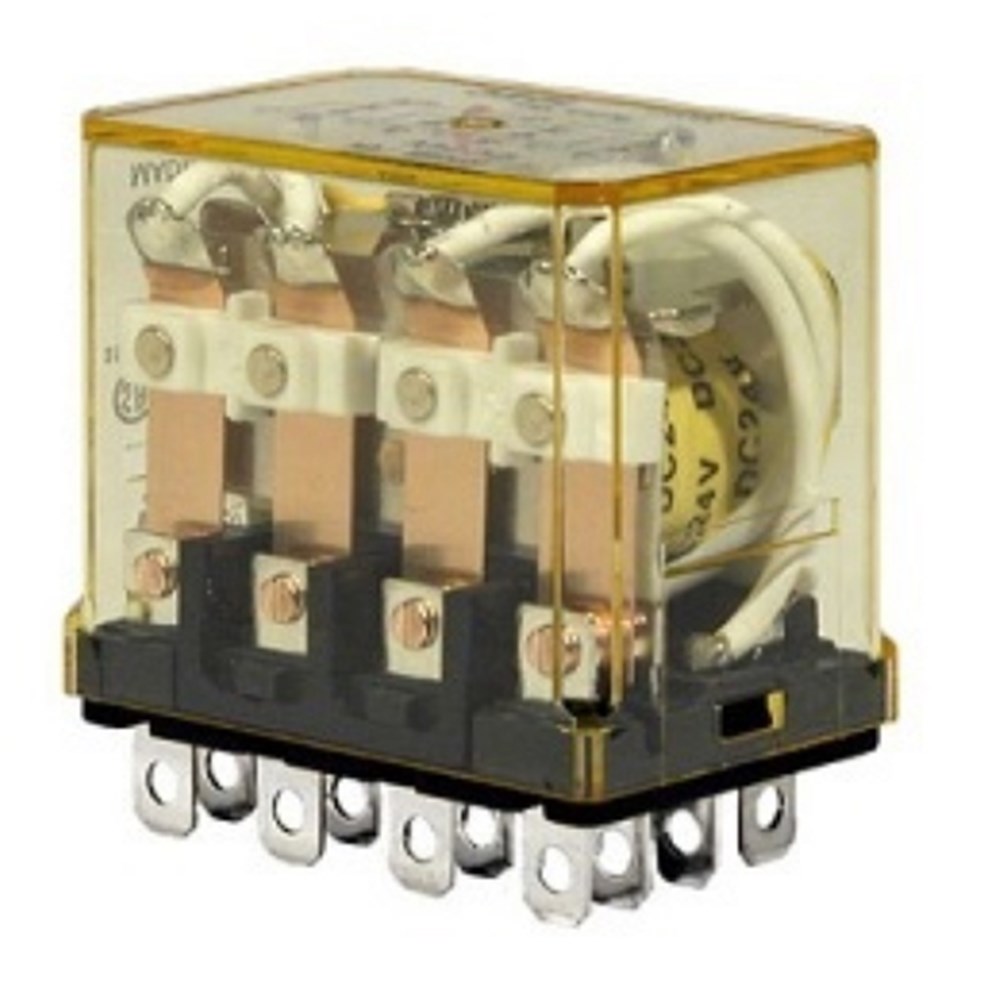

The IDEC RH4B-ULAC24 is a compact power relay from the RH4 Series, designed for efficient space utilization and high-performance switching. This 4PDT relay operates with a 24VAC coil voltage and supports a 10A switching current. It features blade-style terminals for secure connections and includes an LED indicator for clear status visualization. With its compact size and robust contact capacity, this relay is ideal for various applications requiring reliable power management.

Brand	IDEC
Auxiliary Function	Indicator and Check Button
Coil Voltage AC (V)	24
Contact Configuration	4PDT
Contact Material	Silver cadmium oxide
Insulation Resistance (MO)	100
Minimum Electrical Life	200,000 operations
Minimum Mechanical Life	50,000,000 operations
No. of Poles	4P
Operating Humidity	45 to 85% RH (no condensation)
Operational Temperature Range (°C)	-25 to +40
Rated Current (A)	10
Relay Type	RH4 4PDT Relay with LED indicator
Series	RH
Suitable Base	SH4B-05C
Terminal Type	Blade
Weight (g)	74
