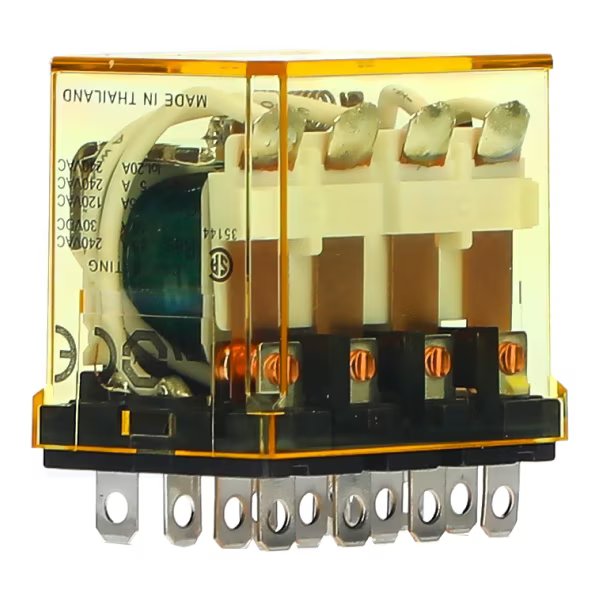

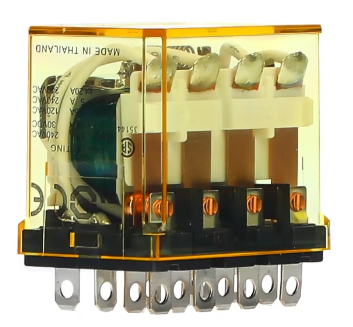

IDEC RELAY, 4PDT, 24V AC, 10A WITH INDICATOR & CHECK BUTTON RH4B-ULC-AC24V

Product Code: RH4B-ULC-AC24V

The IDEC RH4B-ULC-AC24V is a 4PDT relay designed for industrial applications, offering 24V AC compatibility. It features a bright LED indicator for status visibility and includes a check button for manual operation verification. With its robust 10A contact rating, this relay ensures reliable switching performance. Additionally, it is RoHS compliant, ensuring adherence to environmental standards and durability in demanding industrial settings.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 50
Operating Time 25ms (Measured at the rated voltage (at 20°C))
Power Consumption (VA) AC: 2.5VA (50Hz), 2VA (60Hz)
Relay Options Indicator Light & Check Button
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Terminal Shape Blade Terminal
Ambient Temperature Range (°C) -25 to 70
Coil Voltage AC (V) 24
Contact Configuration 4PDT
Contact Material Silver Cadmium Oxide
Contacts 4PDT
Dimensions (mm) 41W x 42H x 27.5D
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 Operations
Minimum Mechanical Life 50,000,000 Operations
No. of Poles 4
Operating Humidity 45 to 85% RH (No Condensation)
Power Consumption (W) DC: 1.5W
Rated Current (A) 10
Terminal Type Blade
Weight (g) 74
