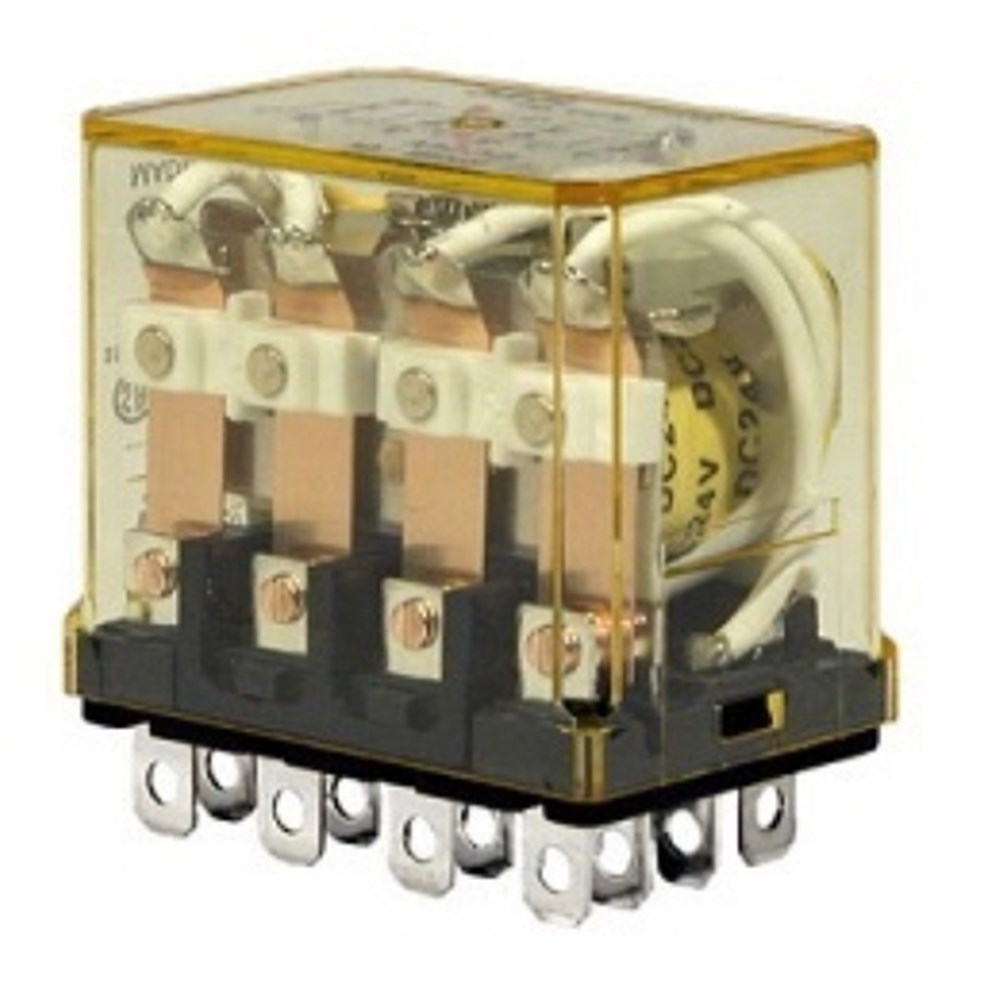

IDEC PLUG-IN RELAY 4PDT 24VAC 10A RH4B-UAC24

Product Code: RH4B-UAC24

The IDEC RH4B-UAC24 is a compact power relay from the RH4 Series, designed for efficient space utilization and high-performance switching. It features a 4PDT configuration with a 24VAC coil voltage and a 10A switching current capacity. The relay is equipped with blade style terminals for secure connections. Its compact size combined with a robust 10A contact capacity makes it suitable for various applications requiring reliable power management.

Technical Specifications

Brand IDEC
Auxiliary Function Indicator and Check Button
Coil Voltage AC (V) 24
Contact Configuration 4PDT
Contact Material Silver cadmium oxide
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 operations
Minimum Mechanical Life 50,000,000 operations
No. of Poles 4P
Operating Humidity 45 to 85% RH (no condensation)
Operational Temperature Range (°C) -25 to +40
Rated Current (A) 10
Relay Type RH4 4PDT Relay
Series RH
Suitable Base SH4B-05C
Terminal Type Blade
Weight (g) 74
