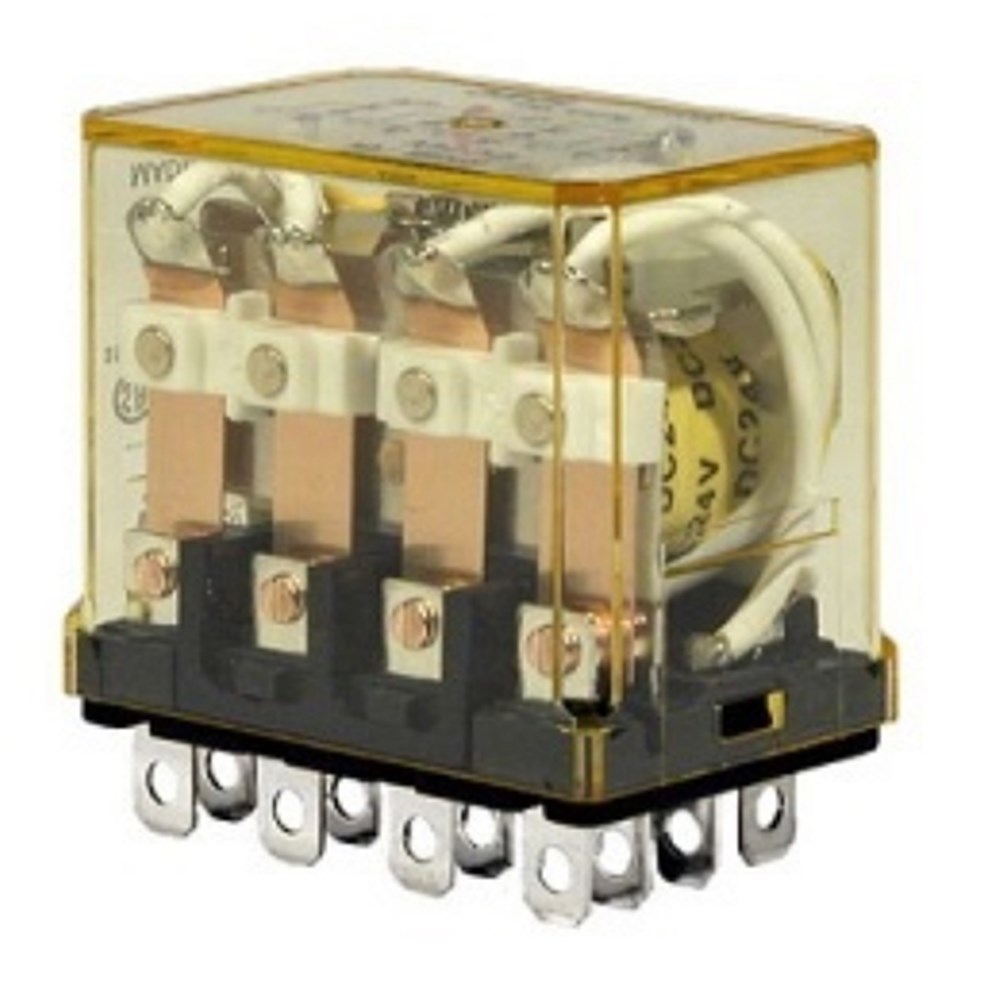

IDEC PLUG-IN RELAY 4PDT WITH INDICATOR 240VAC 10A RH4B-ULAC240

Product Code: RH4B-ULAC240

The IDEC RH4B-ULAC240 is a compact power relay from the RH4 Series, designed for efficient space utilization and high-performance switching. This 4PDT relay operates with a 240VAC coil voltage and supports a 10A switching current. It features blade-style terminals for secure connections and includes an LED indicator for clear status visualization. With its compact size and robust 10A contact capacity, this relay is ideal for various applications requiring reliable power management.

Technical Specifications

Brand IDEC
Auxiliary Function Indicator and Check Button
Coil Voltage AC (V) 240
Contact Configuration 4PDT
Contact Material Silver cadmium oxide
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 operations
Minimum Mechanical Life 50,000,000 operations
No. of Poles 4P
Operating Humidity 45 to 85% RH (no condensation)
Operational Temperature Range (°C) -25 to +40
Rated Current (A) 10
Relay Type RH4 4PDT Relay with LED indicator
Series RH
Suitable Base SH4B-05C
Terminal Type Blade
Weight (g) 74
