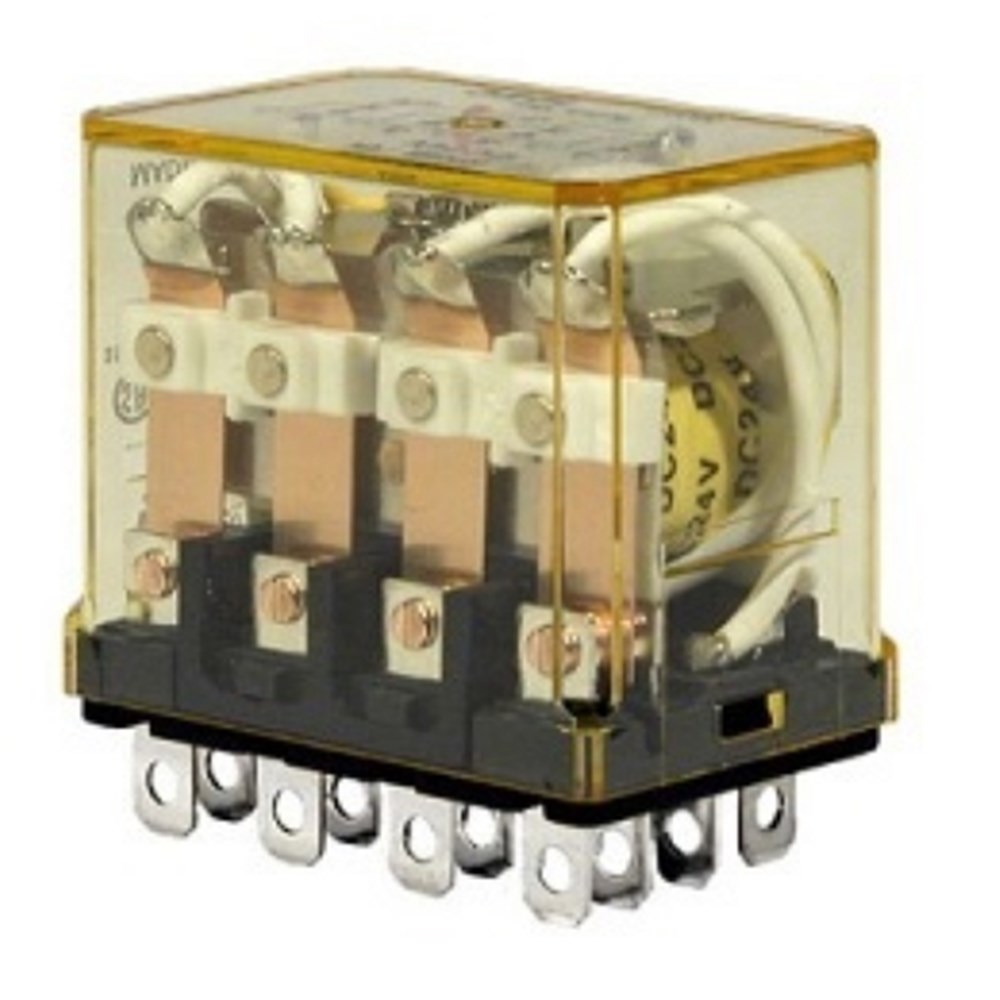

IDEC PLUG-IN RELAY 4PDT 12VDC 10A RH4B-UDC12

Product Code: RH4B-UDC12

The IDEC RH4B-UDC12 is a compact power relay from the RH4 Series, designed for efficient space utilization and high-performance switching. This 4PDT relay operates with a 12VDC coil voltage and supports a 10A switching current. It features blade style terminals for secure connections and boasts a high contact capacity, making it suitable for various applications requiring reliable power control.

Technical Specifications

Brand IDEC
Auxiliary Function Indicator and Check Button
Coil Voltage DC (V) 12
Contact Configuration 4PDT
Contact Material Silver cadmium oxide
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 operations
Minimum Mechanical Life 50,000,000 operations
No. of Poles 4P
Operating Humidity 45 to 85% RH (no condensation)
Operational Temperature Range (°C) -25 to +40
Rated Current (A) 10
Relay Type RH4 4PDT Relay
Series RH
Suitable Base SH4B-05C
Terminal Type Blade
Weight (g) 74
