Product Code: RH4B-ULDC125

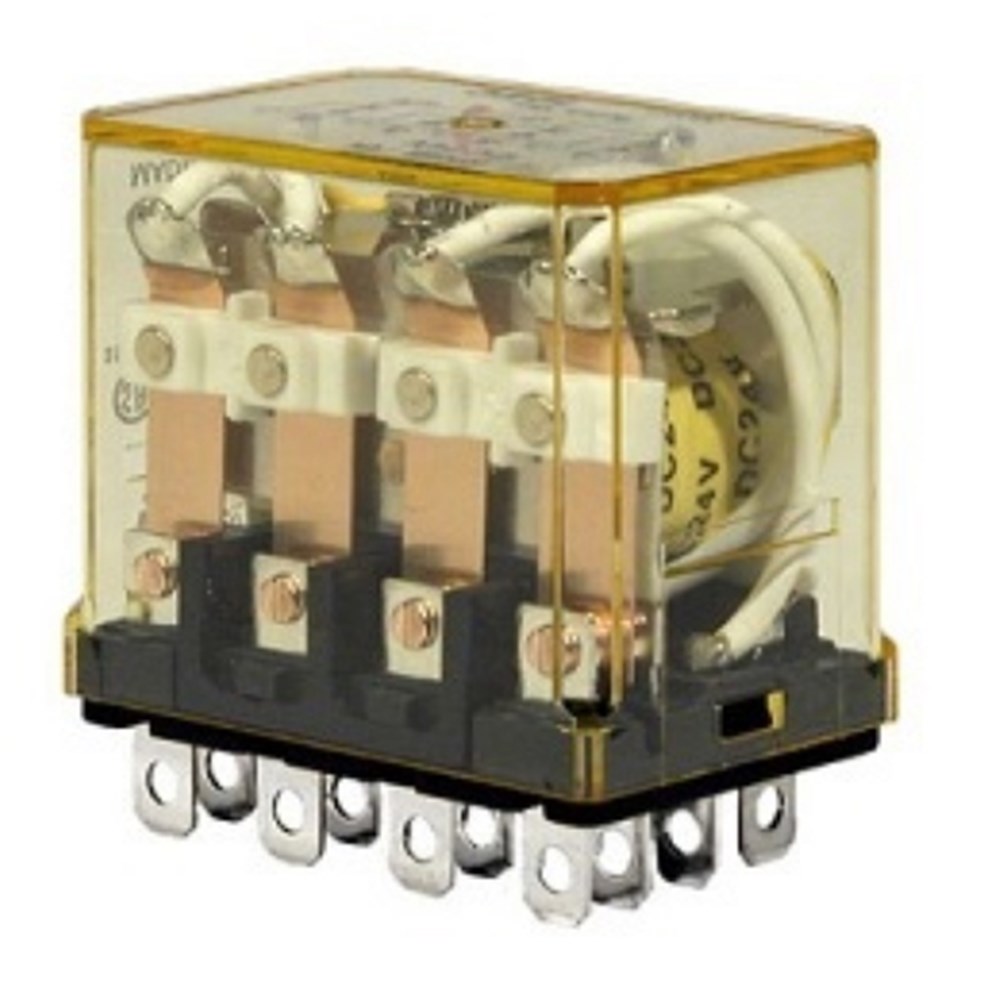

The IDEC RH4B-ULDC125 is a compact power relay from the RH4 Series, designed for efficient space utilization and high-performance switching. It features a 4PDT configuration with a 125VDC coil voltage and a 10A switching current capacity. Equipped with blade style terminals for easy installation, this relay also includes an LED indicator for quick status recognition. Its robust design ensures reliable operation in various applications requiring compact yet powerful relays.

Brand	IDEC
Auxiliary Function	Indicator and Check Button
Coil Voltage DC (V)	125
Contact Configuration	4PDT
Contact Material	Silver cadmium oxide
Insulation Resistance (MO)	100
Minimum Electrical Life	200,000 operations
Minimum Mechanical Life	50,000,000 operations
No. of Poles	4P
Operating Humidity	45 to 85% RH (no condensation)
Operational Temperature Range (°C)	-25 to +40
Rated Current (A)	10
Relay Type	RH4 4PDT Relay with LED indicator
Series	RH
Suitable Base	SH4B-05C
Terminal Type	Blade
Weight (g)	74
