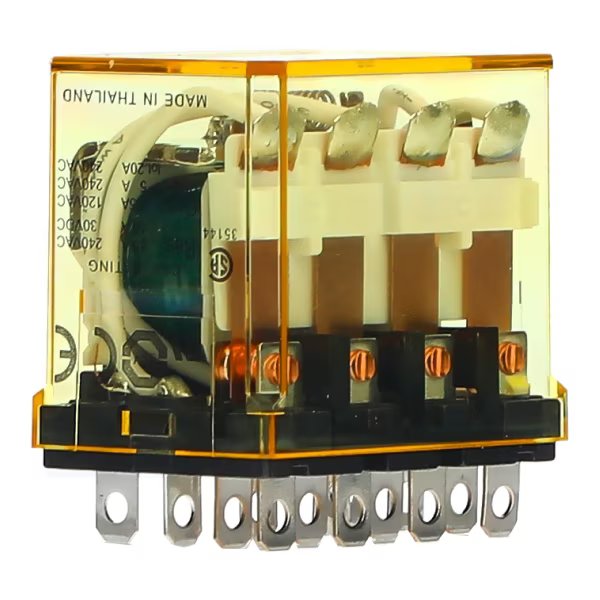

IDEC RELAY, 4PDT, 125V DC, 10A WITH DIODE RH4B-UD-DC125V

Product Code: RH4B-UD-DC125V

The IDEC RH4B-UD-DC125V is a 4PDT relay with a built-in diode, designed for DC circuits with a voltage of up to 125V and a contact capacity of 10A. Its compact form factor ensures space-saving installation while providing high-capacity switching capabilities. This miniature power relay is suitable for various applications where efficient power management in a small footprint is essential.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 50
Operating Time 25ms
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Terminal Shape Blade Terminal
Coil Voltage DC (V) 125
Contact Material Silver Cadmium Oxide
Contacts 4PDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 50,000,000
No. of Poles 4
Operating Humidity 45 to 85%
Power Consumption (W) 1.5
Weight (g) 74
