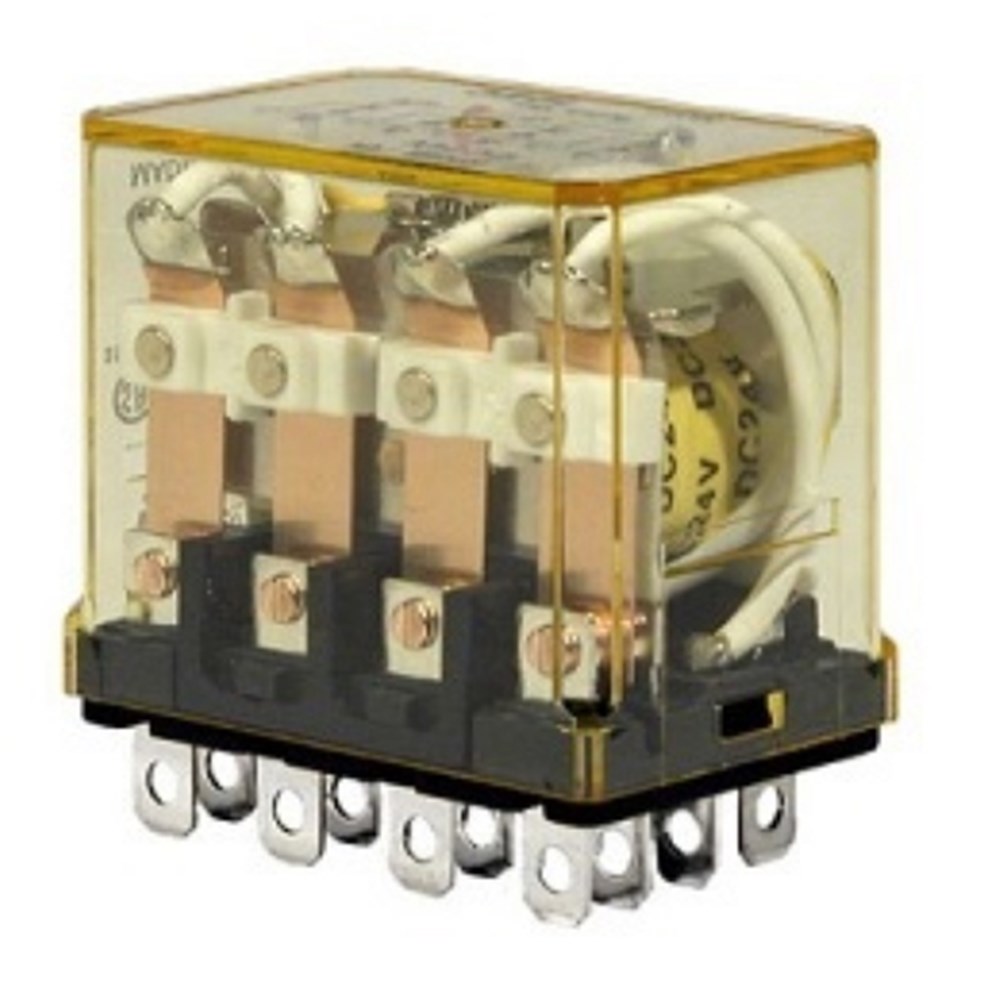

IDEC PLUG-IN RELAY 4PDT 110VDC 10A RH4B-UDC110

Product Code: RH4B-UDC110

The IDEC RH4B-UDC110 is a compact power relay from the RH4 Series, featuring a 4PDT configuration and a 110VDC coil voltage. It offers a 10A switching current capacity and utilizes blade style terminals for easy connection. Designed to save space while providing high switching capabilities, this relay is suitable for various applications requiring reliable power management.

Technical Specifications

Brand IDEC
Auxiliary Function Indicator and Check Button
Coil Voltage DC (V) 110
Contact Configuration 4PDT
Contact Material Silver cadmium oxide
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 operations
Minimum Mechanical Life 50,000,000 operations
No. of Poles 4P
Operating Humidity 45 to 85% RH (no condensation)
Operational Temperature Range (°C) -25 to +40
Rated Current (A) 10
Relay Type RH4 4PDT Relay
Series RH
Suitable Base SH4B-05C
Terminal Type Blade
Weight (g) 74
