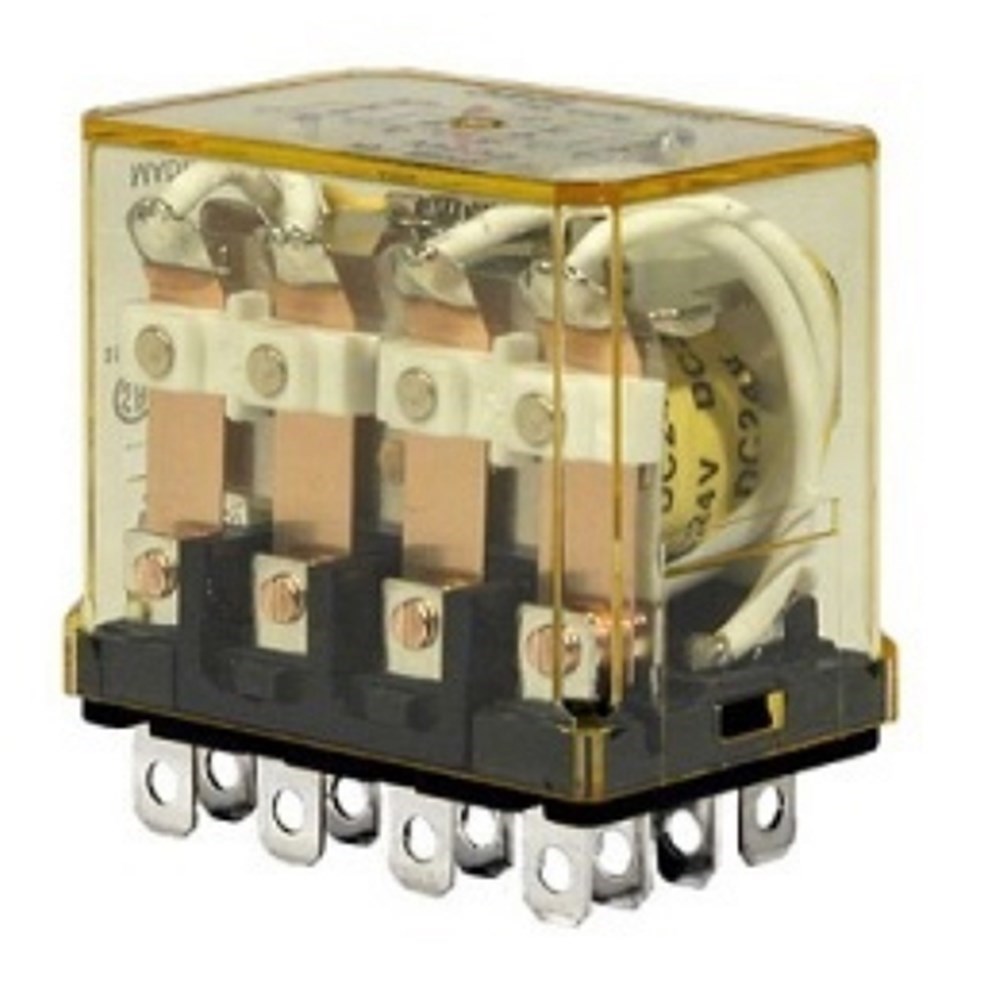

IDEC PLUG-IN RELAY 4PDT WITH INDICATOR 110VAC 10A RH4B-ULAC110

Product Code: RH4B-ULAC110

The IDEC RH4B-ULAC110 is a compact 4PDT plug-in relay designed for efficient power switching. It operates with a 110VAC coil voltage and supports a 10A switching current. The relay features blade-style terminals for secure connections and an integrated LED indicator for status visualization. Its space-saving design and high contact capacity make it suitable for various applications requiring reliable power management.

Technical Specifications

Brand IDEC
Auxiliary Function Indicator and Check Button
Coil Voltage AC (V) 110
Contact Configuration 4PDT
Contact Material Silver cadmium oxide
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 operations
Minimum Mechanical Life 50,000,000 operations
No. of Poles 4P
Operating Humidity 45 to 85% RH (no condensation)
Operational Temperature Range (°C) -25 to +40
Rated Current (A) 10
Relay Type RH4 4PDT Relay with LED indicator
Series RH
Suitable Base SH4B-05C
Terminal Type Blade
Weight (g) 74
