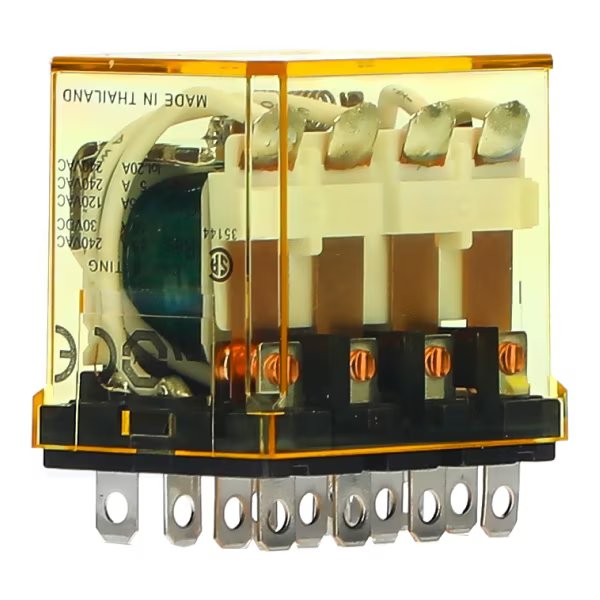

IDEC RELAY 4PDT 10A W/DIODE LIGHT RELAY RH4B-ULD-DC24

Product Code: RH4B-ULD-DC24

The IDEC RH4B-ULD-DC24 is a 4PDT relay with a 10A contact rating, designed for robust industrial applications. It operates on a 24V DC power supply and features a bright LED indicator for immediate visual status confirmation. The relay's versatile 4DPDT configuration allows for multiple switching solutions. Built to be durable and RoHS compliant, it meets stringent industry standards for safety and reliability.

Technical Specifications

Contact Resistance (mO) 50
Operating Time 25ms (Measured at the rated voltage (at 20°C))
Power Consumption (VA) AC: 2.5VA (50Hz), 2VA (60Hz)
Relay Options Indicator Light & Diode
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Brand IDEC
Terminal Shape Blade Terminal
Ambient Temperature Range (°C) -25 to 70
Coil Voltage DC (V) 24
Contact Configuration 4PDT
Contact Material Silver Cadmium Oxide
Contacts 4PDT
Dimensions (mm) 41W x 42H x 27.5D
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 Operations
Minimum Mechanical Life 50,000,000 Operations
No. of Poles 4
Operating Humidity 45 to 85% RH (No Condensation)
Power Consumption (W) DC: 1.5W
Rated Current (A) 10
Terminal Type Blade
Weight (g) 74
