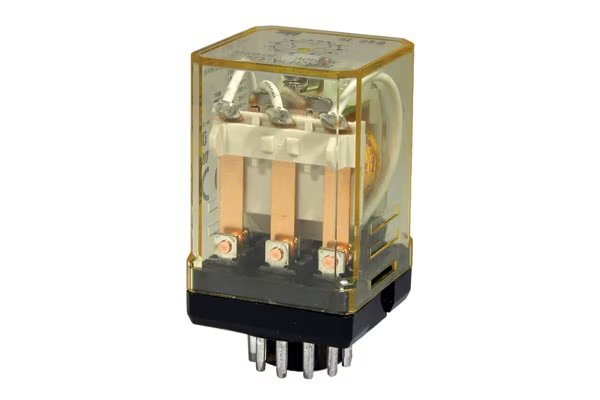

IDEC RELAY, 3PDT, 6V DC, 10A ROUND 11 PIN RELAY RR3PA-UDC6

Product Code: RR3PA-UDC6

The IDEC RR3PA-UDC6 is a robust 3PDT relay designed for versatile applications, offering a 6V DC coil voltage and a 10A contact rating. It ensures high reliability and longevity, with worldwide certifications including UL, CSA, TUV, and CE. This relay features a check button for testing purposes and an indicator light for status monitoring. It provides flexible installation options such as flange mounting, DIN socket, or panel mount socket to suit various industrial needs.

Technical Specifications

Operating Humidity 5 to 85%
Terminal Shape Pin Terminal
Resistance to Shock (m/s²) 100
Model Basic
Brand IDEC
Operational Temperature Range (°C) -25 to 40
Coil Voltage DC (V) 6
Contact Material Silver
Contacts 3PDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 10,000,000
Operating Time 25ms
Resistance to Vibrations 10 to 55Hz
Dimensions (mm) 35.6W x 68.5H x 35.6D
Weight (g) 96
