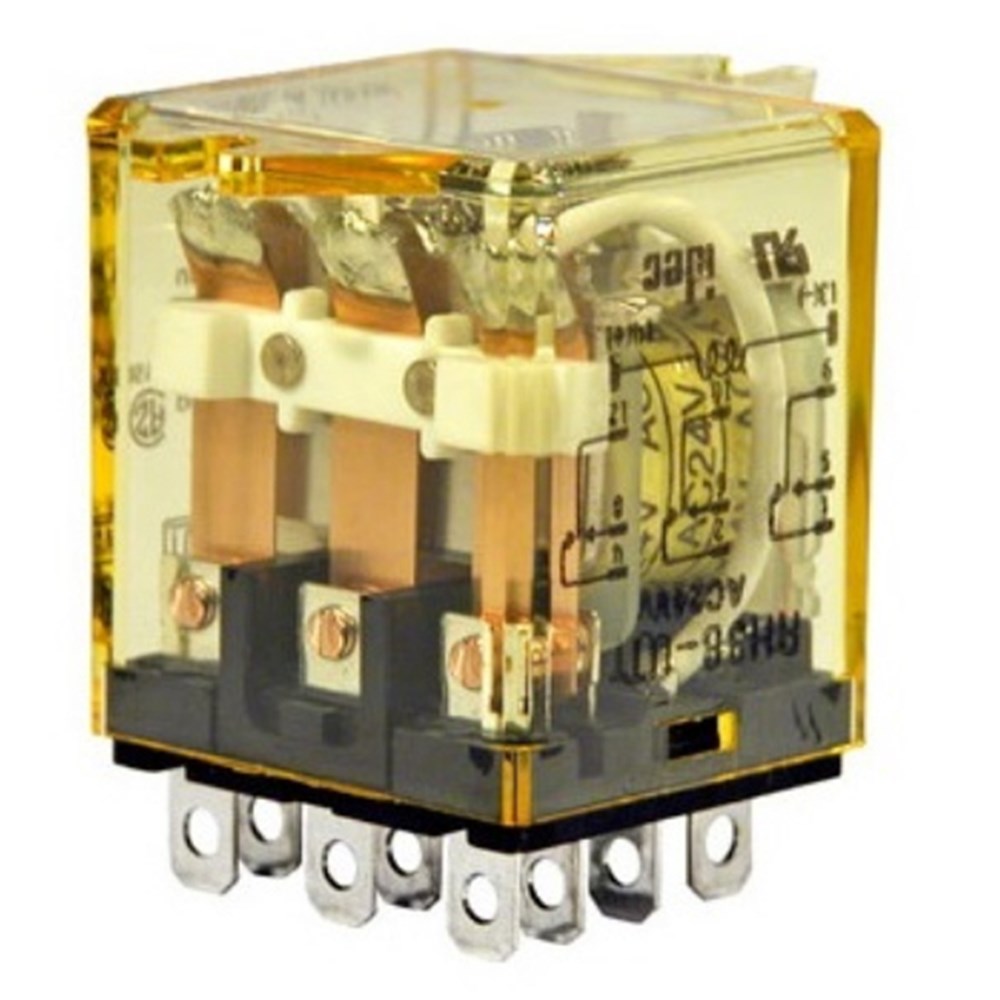

IDEC PLUG-IN RELAY 3PDT 48VDC 10A RH3B-UDC48

Product Code: RH3B-UDC48

The IDEC RH3B-UDC48 is a compact power relay from the RH3 Series, designed for efficient space utilization and high-performance switching. This 3PDT relay operates with a 48VDC coil voltage and supports a 10A switching current. Its blade style terminals ensure secure connections, while its compact size does not compromise on its 10A contact capacity or its high switching capabilities. Ideal for various applications requiring reliable power relay operation in a condensed footprint.

Technical Specifications

Brand IDEC
Coil Voltage DC (V) 48
Contact Configuration 3PDT
Contact Material Silver cadmium oxide
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 operations
Minimum Mechanical Life 50,000,000 operations
No. of Poles 3P
Operating Humidity 45 to 85% RH (no condensation)
Operational Temperature Range (°C) -25 to +40
Rated Current (A) 10
Relay Type RH3 3PDT Relay
Series RH
Suitable Base SH3B-05C
Terminal Type Blade
Weight (g) 50
