Relays

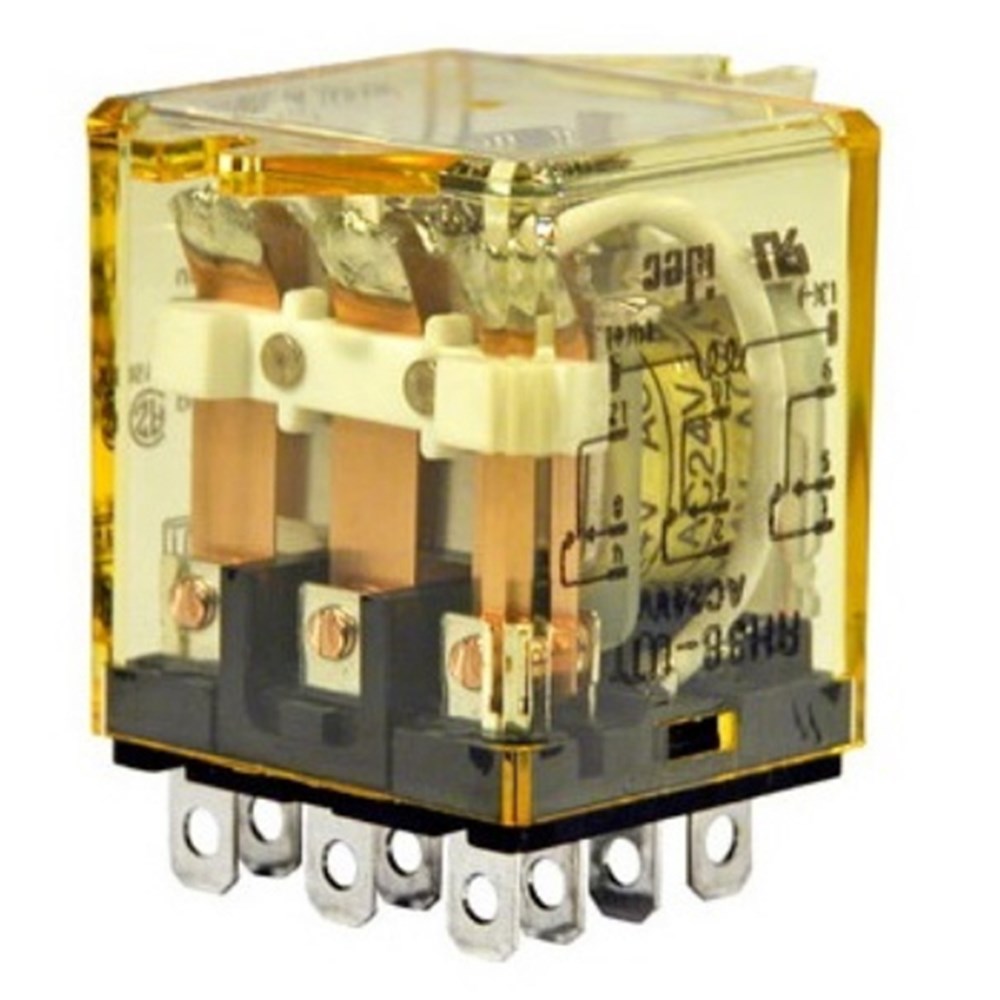

IDEC PLUG-IN RELAY 3PDT 32VDC BLADE TYPE RH3B-UDC32

Product Code: RH3B-UDC32

The IDEC RH3B-UDC32 is a compact power relay from the RH3 Series, designed for efficient space utilization and high-performance switching. It features a 3PDT configuration with a 32VDC coil voltage and a 10A switching current capacity. The blade style terminals ensure easy installation and secure connections. This relay is engineered to offer reliable operation with its high switching capacity in a space-saving design.

Technical Specifications

Brand IDEC
Coil Voltage DC (V) 32
Contact Configuration 3PDT
Contact Material Silver cadmium oxide
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 operations
Minimum Mechanical Life 50,000,000 operations
No. of Poles 3P
Operating Humidity 45 to 85% RH (no condensation)
Operational Temperature Range (°C) -25 to +40
Rated Current (A) 10
Relay Type RH3 3PDT Relay
Series RH
Suitable Base SH3B-05C
Terminal Type Blade
Weight (g) 50
