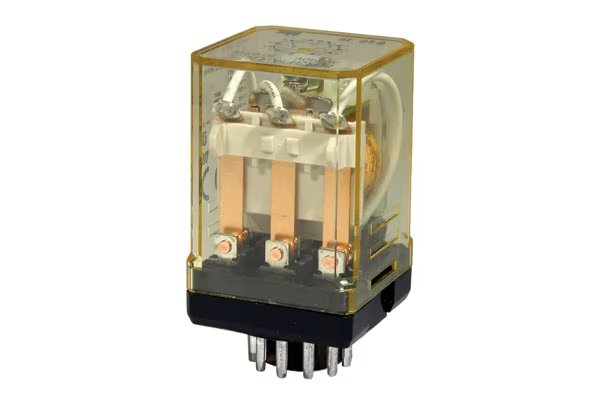

IDEC RELAY, 3PDT, 24V DC, 10A WITH INDICATOR ROUND 11 PIN RELAY RR3PA-ULDC24

Product Code: RR3PA-ULDC24

The IDEC RR3PA-ULDC24 is a robust 3PDT relay designed for demanding industrial environments. It operates on 24V DC and can handle up to 10A loads with high durability against vibration and shock. This relay features a wear-resistant self-holding mechanism, making it ideal for latching applications. Additionally, it meets RoHS compliance standards, ensuring environmentally responsible use.

Technical Specifications

Contact Resistance (mO) 30
Operating Time 20ms (Measured at the rated voltage (at 20°C))
Power Consumption (VA) AC: 3VA (50Hz), 2.5VA (60Hz)
Relay Options Indicator Light
Resistance to Shock (m/s²) 100
Resistance to Vibrations 10 to 55Hz
Brand IDEC
Terminal Shape Pin Terminal
Ambient Temperature Range (°C) -25 to 40
Coil Voltage DC (V) 24
Contact Configuration 3PDT
Contact Material Silver
Contacts 3PDT
Dimensions (mm) 36.4W x 56H x 36.4D
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 Operations
Minimum Mechanical Life 10,000,000 Operations
Model With Indicator
No. of Pins 11
Operating Humidity 5 to 85% RH (No Condensation)
Operational Temperature Range (°C) -25 to 40
Power Consumption (W) DC:1.5W
Rated Current (A) 10
Terminal Type Pin
Weight (g) 96
