Product Code: RH3B-UAC24

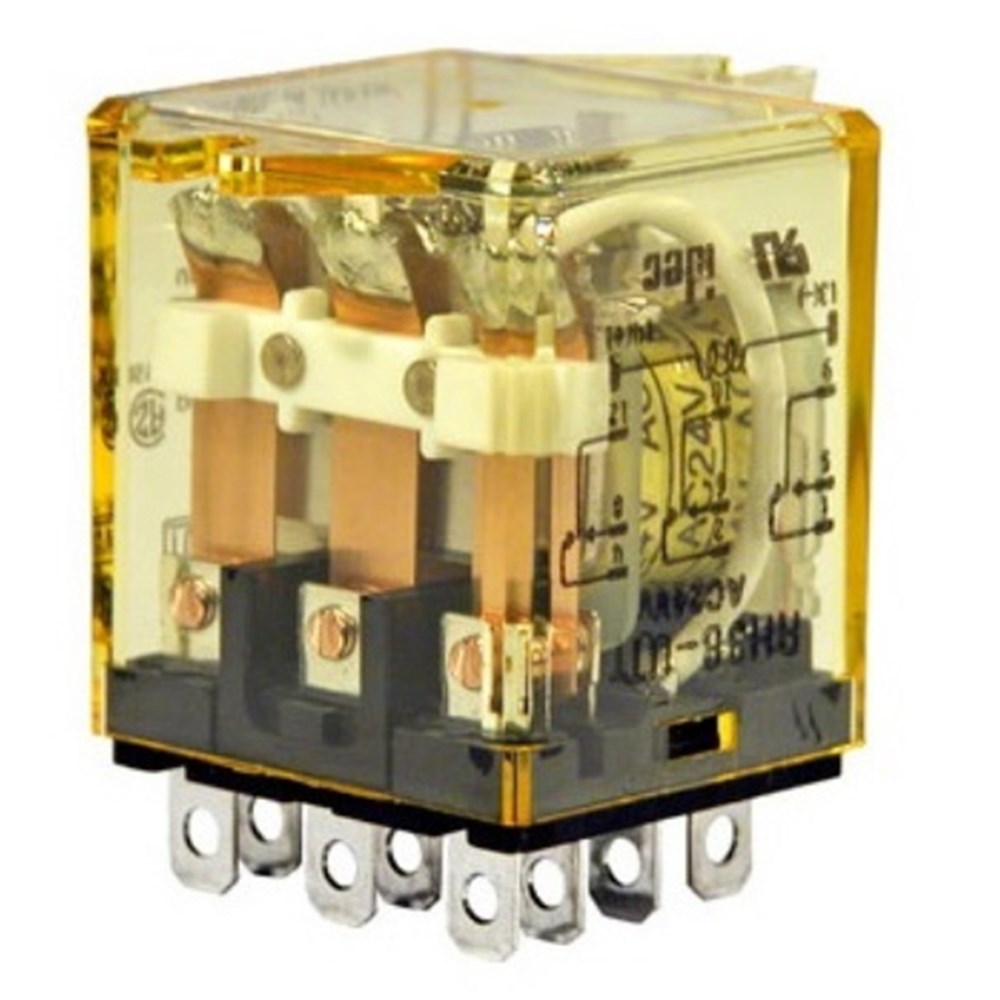

The IDEC RH3B-UAC24 is a compact power relay from the RH3 Series, designed for efficient space utilization and high-performance switching. It features a 3PDT configuration with a 24VAC coil voltage and a 10A switching current capacity. The relay is equipped with blade style terminals for secure connections. Its compact size does not compromise its ability to handle high-capacity loads, making it suitable for various applications requiring reliable power management.

Brand	IDEC
Coil Voltage AC (V)	24
Contact Configuration	3PDT
Contact Material	Silver cadmium oxide
Insulation Resistance (MO)	100
Minimum Electrical Life	200,000 operations
Minimum Mechanical Life	50,000,000 operations
No. of Poles	3P
Operating Humidity	45 to 85% RH (no condensation)
Operational Temperature Range (°C)	-25 to +40
Rated Current (A)	10
Relay Type	RH3 3PDT Relay
Series	RH
Suitable Base	SH3B-05C
Terminal Type	Blade
Weight (g)	50

Relays

IDEC PLUG-IN RELAY 3PDT 24VAC 10A RH3B-UAC24

Product Code: RH3B-UAC24
