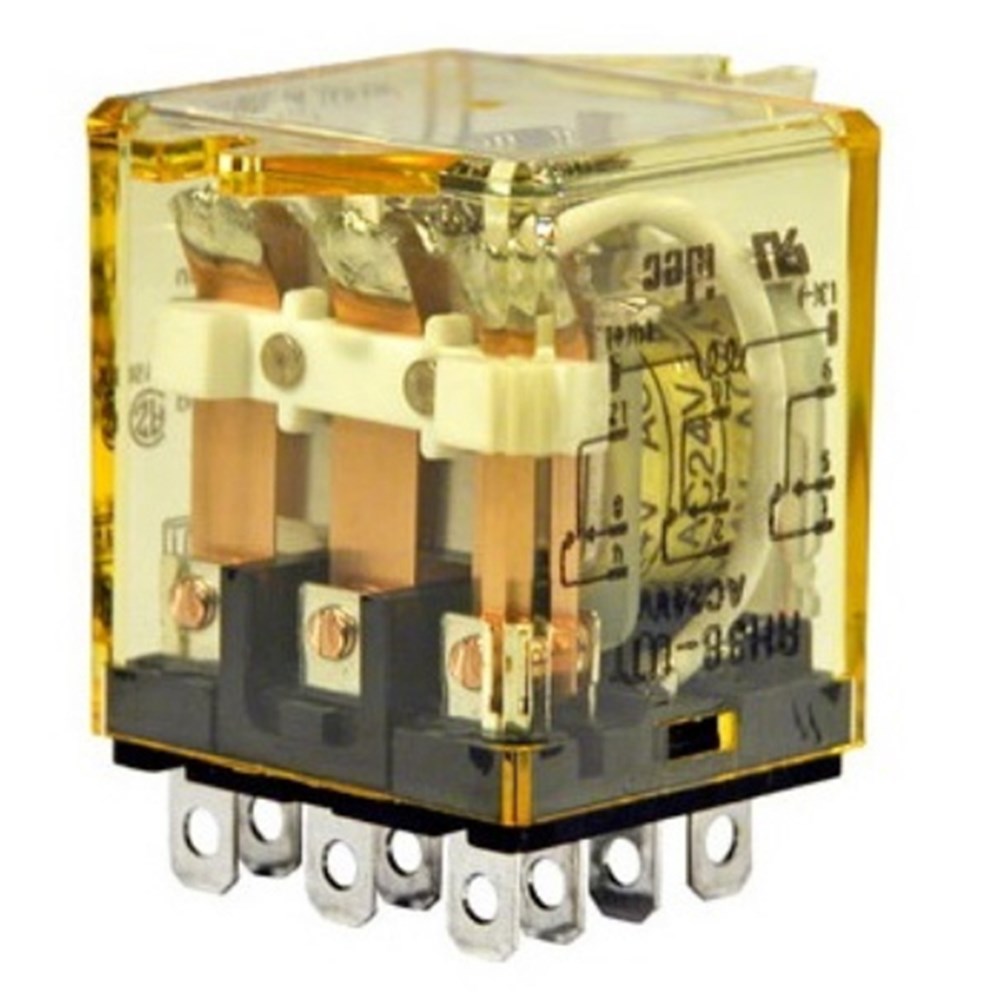

IDEC PLUG-IN RELAY WITH INDICATOR 3PDT 240VAC 10A RH3B-ULAC240

Product Code: RH3B-ULAC240

The IDEC RH3B-ULAC240 is a compact power relay from the RH3 Series, designed for efficient space utilization and high-performance switching. This 3PDT relay operates with a 240VAC coil voltage and supports a 10A switching current. It features blade-style terminals for secure connections and includes an LED indicator for clear status visualization. With its robust contact capacity and high switching capability, this plug-in relay is suitable for a wide range of applications.

Technical Specifications

Brand IDEC
Coil Voltage AC (V) 240
Contact Configuration 3PDT
Contact Material Silver cadmium oxide
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 operations
Minimum Mechanical Life 50,000,000 operations
No. of Poles 3P
Operating Humidity 45 to 85% RH (no condensation)
Operational Temperature Range (°C) -25 to +40
Rated Current (A) 10
Relay Type RH3 3PDT Relay with LED indicator
Series RH
Suitable Base SH3B-05C
Terminal Type Blade
Weight (g) 50
