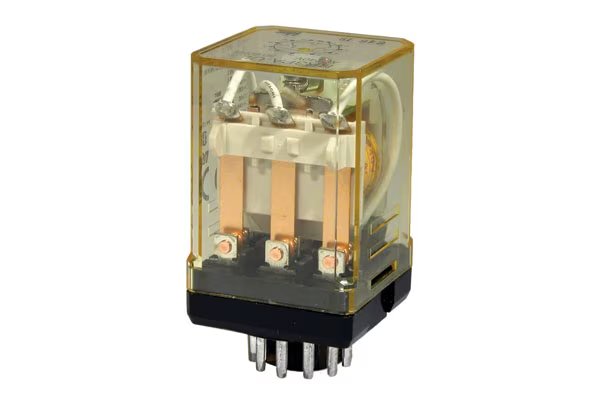

IDEC RELAY, 3PDT, 12V DC, 10 AROUND 11 PIN RELAY RR3P-UDC12

Product Code: RR3P-UDC12

The IDEC RR3P-UDC12 is a robust 3PDT relay designed for demanding industrial environments. This 12V DC relay supports up to 10A and features a durable, wear-resistant self-holding mechanism, ensuring high reliability against vibration and shock. It is specifically engineered for latching applications, providing stable performance where maintaining state is crucial. Additionally, it meets RoHS compliance standards, adhering to environmental safety regulations.

Technical Specifications

Contact Resistance (mO) 30
Operating Time 20ms (Measured at the rated voltage (at 20°C))
Power Consumption (VA) AC: 3VA (50Hz), 2.5VA (60Hz)
Resistance to Shock (m/s²) 100
Resistance to Vibrations 10 to 55Hz
Brand IDEC
Terminal Shape Pin Terminal
Ambient Temperature Range (°C) -25 to 40
Coil Voltage DC (V) 12
Contact Configuration 3PDT
Contact Material Silver
Contacts 3PDT
Dimensions (mm) 36.4W x 56H x 36.4D
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 Operations
Minimum Mechanical Life 10,000,000 Operations
Model Basic
No. of Pins 11
Operating Humidity 5 to 85% RH (No Condensation)
Operational Temperature Range (°C) -25 to 40
Power Consumption (W) DC:1.5W
Rated Current (A) 10
Terminal Type Pin
Weight (g) 96
